EPT10010WF

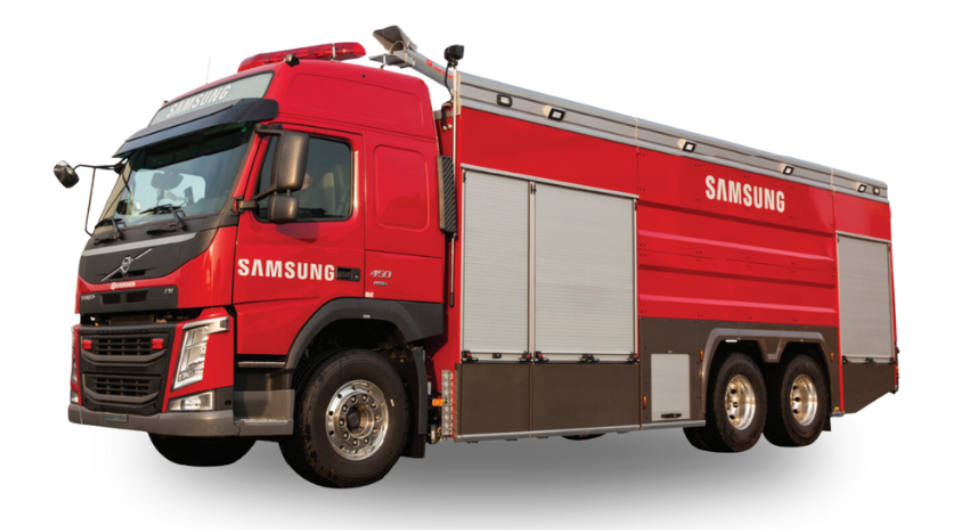

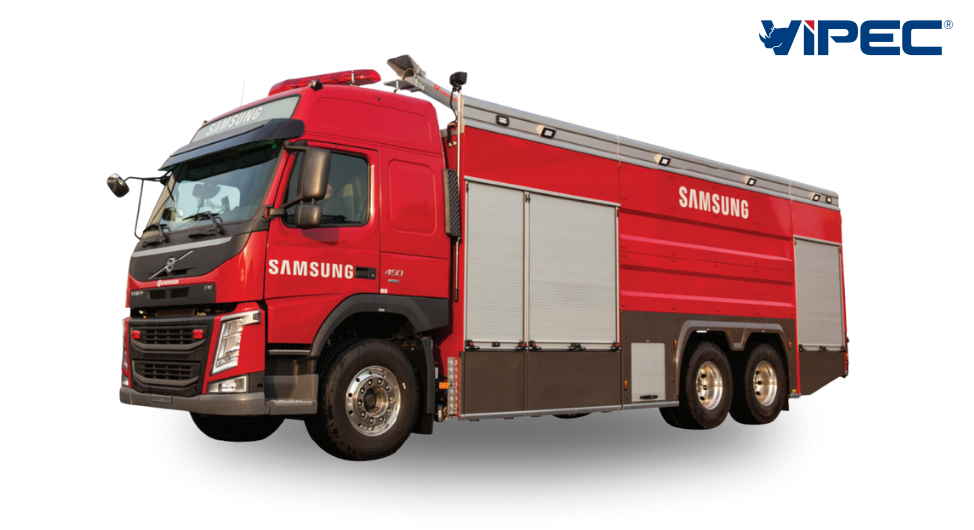

Large Fire Truck 10,000L
10.000L
1,000 l
South Korea
Nationwide

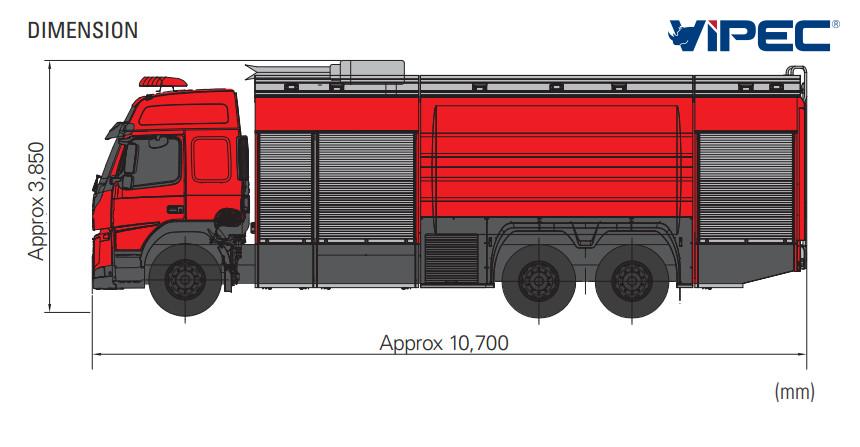

Overall Length
< 10,700 mm
Overall Height
< 3,850 mm
Overall Width
< 2,500 mm
Axle
6 x 4
Fire Monitor Flow Rate
2,500 LPM
Water Tank Capacity
10.000 l
Foam Tank Capacity
1,000 l
Foam System
Flow sensor around pump balancing system
The base vehicle is a Hyundai HD 170, equipped with a direct injection turbocharged diesel engine providing a maximum power of 290PS and a top speed of 120km/h;
The water tank is made of corrosion-resistant stainless steel (STS304) with a capacity of 4,500 liters;
The foam tank is made of corrosion-resistant stainless steel (STS316L) with a capacity of 400 liters of foam;
The vehicle is equipped with a roof-mounted monitor for water/foam firefighting, with a flow rate of 3,800 liters/minute at 10 bar pressure, a throw range of 60m, 360° rotation, 75° upward and 45° downward articulation;
The centrifugal fire pump features a lightweight, corrosion-resistant bronze (BRC) body and a nickel-chrome (stainless steel) pump shaft. Flow rates are 3,800 liters/minute at 12kg/cm2 with a 41mm nozzle diameter, 2,820 liters/minute at 8.5kg/cm2 with a 38.5mm nozzle diameter, and 2,054 liters/minute at 14kg/cm2 with a 29mm nozzle diameter.
