EPT05005WF
Large Fire Truck 5,000L
5,000 l
500 l
South Korea
Nationwide
Monitor Flow Rate
2,820 LPM @ 8.5bar
Water Tank Capacity
5.000 l
Foam Tank Capacity
500 l
Roof Monitor
Manual control 3800 l/min
Foam System
Pump-mounted

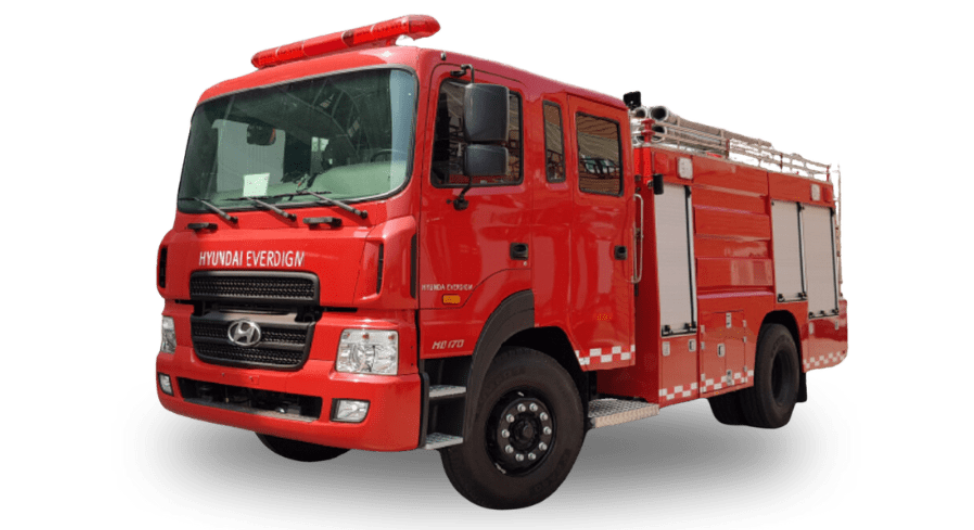

Base vehicle: Hyundai HD 170, equipped with a direct injection turbo-diesel engine producing a maximum power of 290PS, with a maximum speed of 120km/h;
The water tank is constructed from corrosion-resistant stainless steel (STS304) with a capacity of 4,500 liters of water;
The foam tank is constructed from corrosion-resistant stainless steel (STS316L) with a capacity of 400 liters of foam;
The vehicle is equipped with a roof-mounted monitor for water/foam firefighting, with a flow rate of 3,800 liters/minute at 10 bar pressure, a throw range of 60m, 360° rotation capability, and directional adjustment of 75° upwards and 45° downwards;
The centrifugal fire pump features a lightweight, corrosion-resistant bronze (BRC) pump body and a nickel-chrome (stainless steel) pump shaft. Flow rates are 3,800 liters/minute at 12kg/cm2 with a 41mm nozzle diameter, 2,820 liters/minute at 8.5kg/cm2 with a 38.5mm nozzle diameter, and 2,054 liters/minute at 14kg/cm2 with a 29mm nozzle diameter.
