DOOSAN
Closed-loop FFH
100/70 m3/h
150/230 bar
Overall dimensions (LxWxH)
7550 x 2950 x 2395 mm
Weight
9500 kg
Brand
DOOSAN
Model
PU126TI, 6 cylinders
Engine power
294 (400) kW (hp)
Max pump output (Rod/Piston)
100/70 m3/h
Max pump pressure
150/230 bar
Cylinder strokes per minute (Rod/Piston)
25/17
Max pumping height
167/272
Max pumping length
835/1360
Hydraulic system
Closed-loop FFH
Pump system configuration
2110
Cylinder diameter x length
200 x 2100 mm
S-valve type
S2015
Hopper volume
600 L
Travel system
1 axle / 2 single wheels
Outriggers
4 hydraulic outriggers

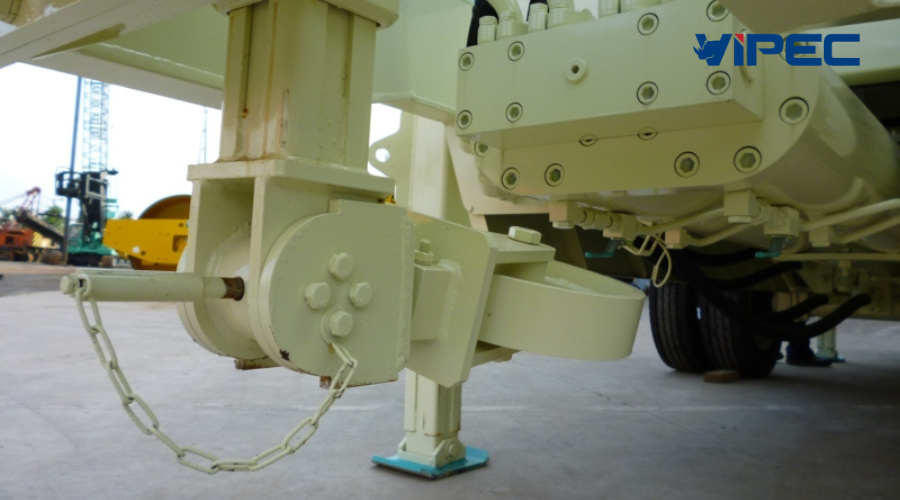

4 hydraulic outriggers, 1 auxiliary front outrigger with support wheel for safe, efficient operation at various heights and terrains

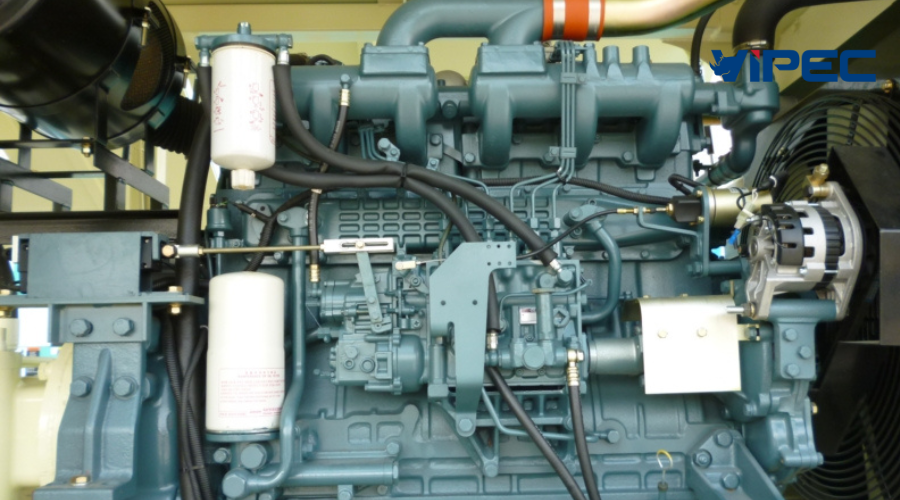

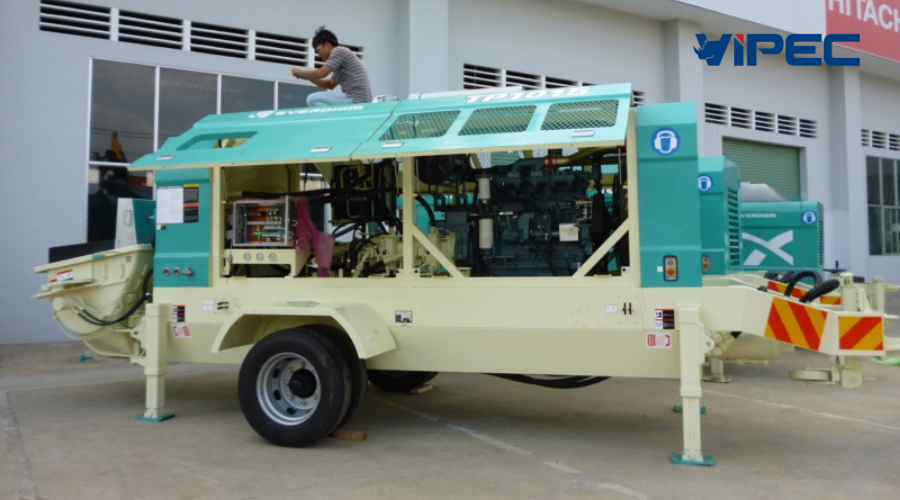

DOOSAN 6-cylinder engine for powerful pumping
Equipped with REXROTH – Germany closed-loop hydraulic system (FFH), for efficiency and economy

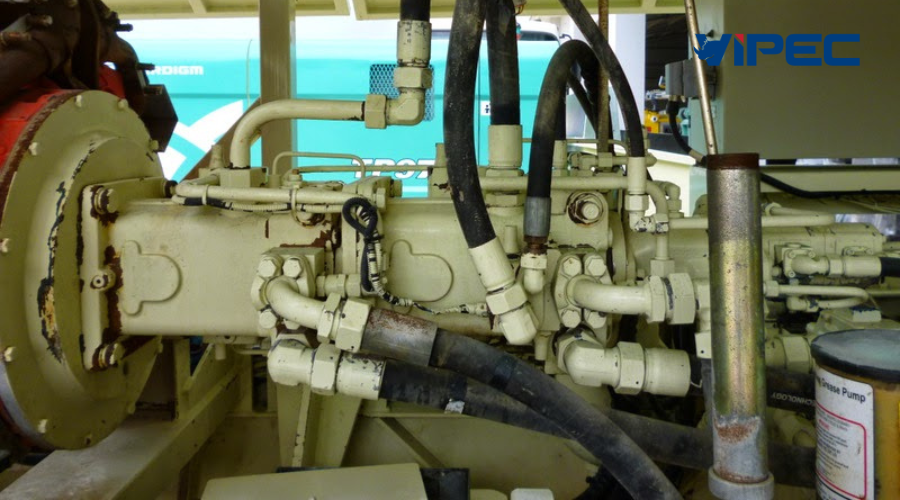

REXROTH – Germany hydraulic swing pump, providing continuous and stable flow with superior durability

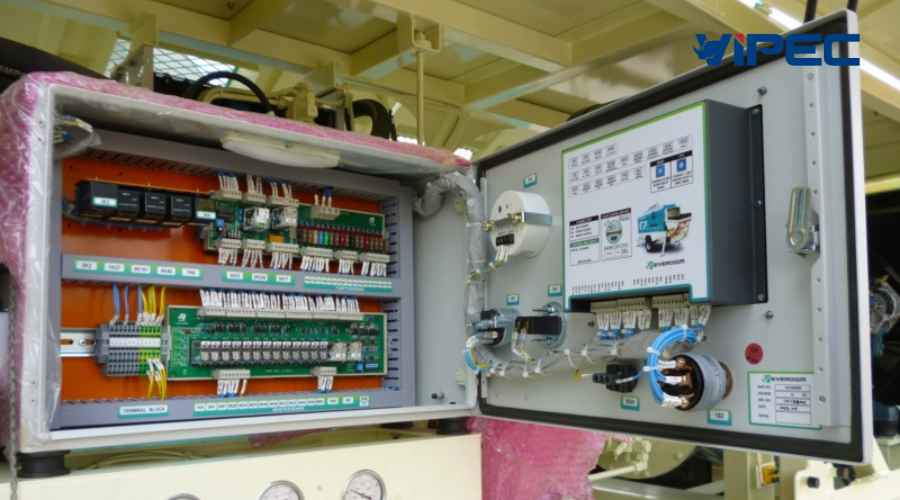

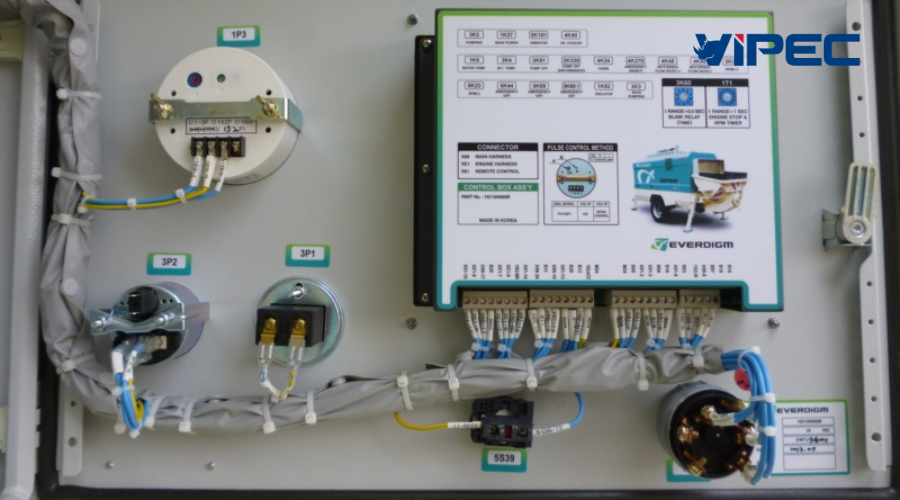

Centralized control cabinet, modular design, allowing easy monitoring of equipment operating status

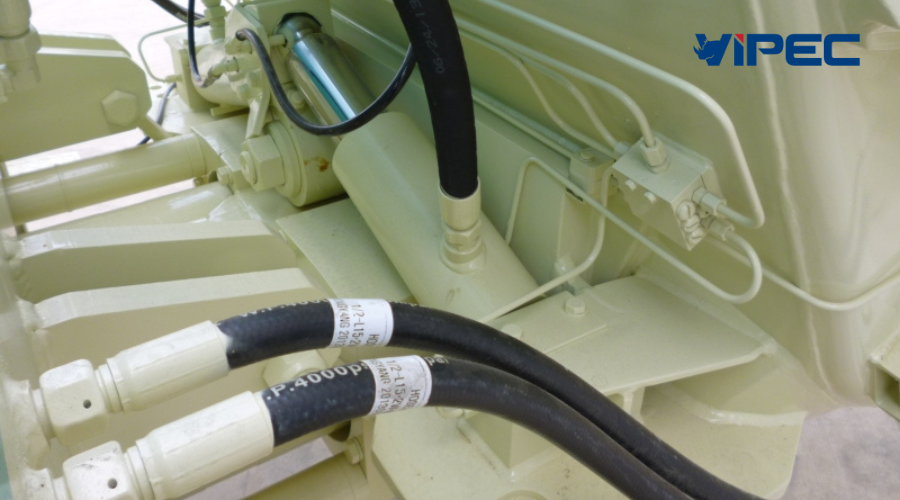

High-pressure Φ60 swing cylinder / rod with new design, equipped with a booster damper, extremely safe and durable
Convenient built-in cleaning system (located on top of the pump): High-pressure hydraulic water pump (20 bar), water tank (200 liters)

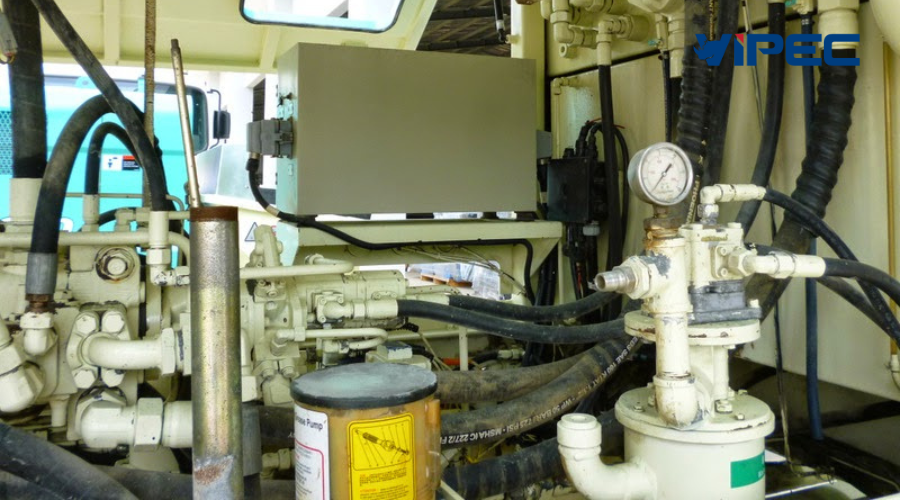

LINCOLN – USA automatic greasing system, combined with a manual pump, increasing safety in case of automatic greasing system failure

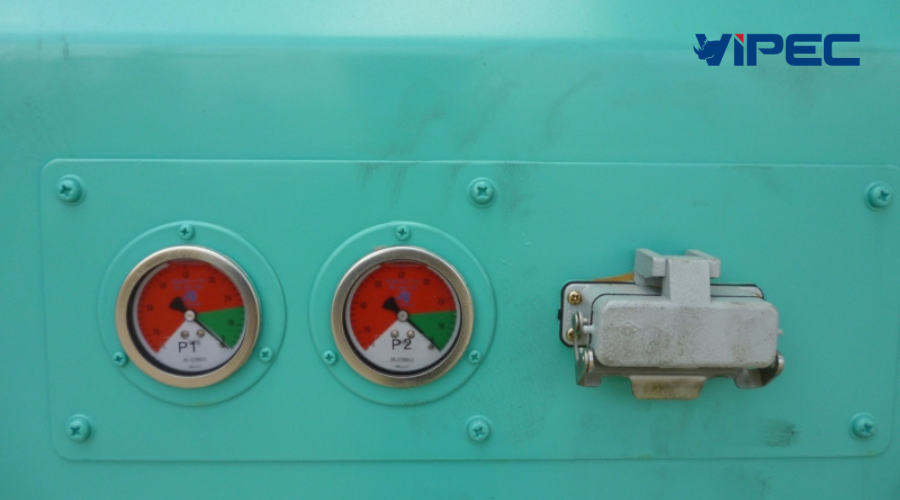

Tilt angle balance gauge, for easy monitoring of equipment stability

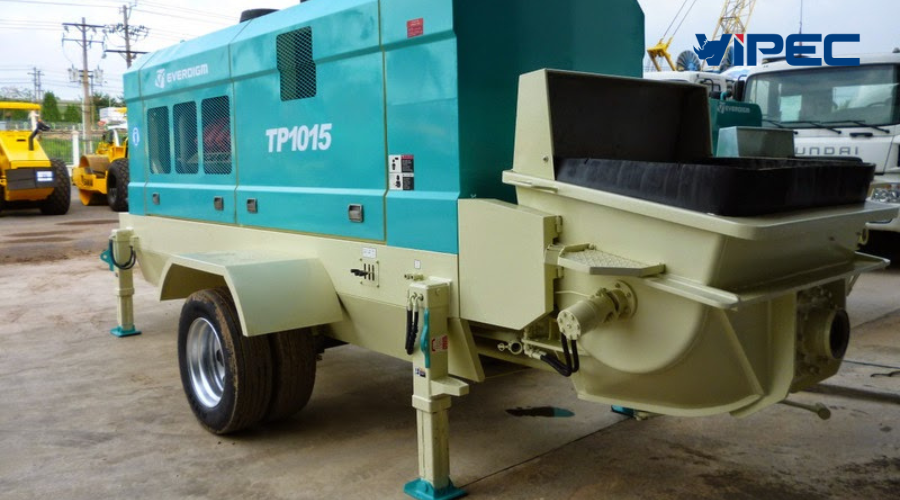

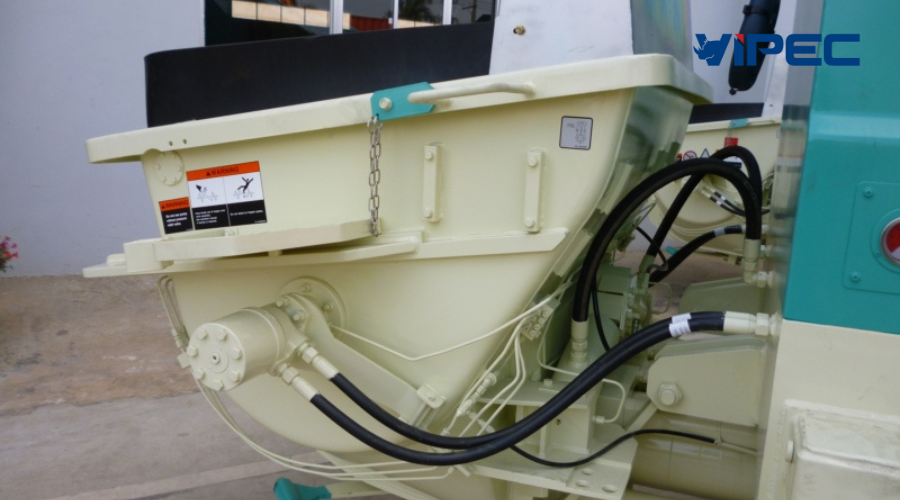

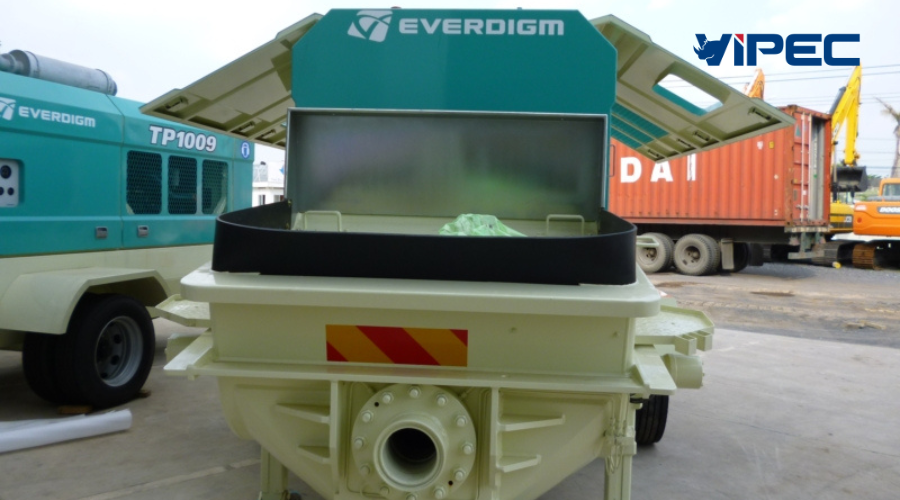

New design feeding hopper system, with 2 hydraulic motors controlling agitator blades on both sides, preventing concrete segregation and clogging
S2015 valve – Large opening, preventing stone segregation, stone clogging, high durability
Tungsten dynamic and static wear plates with high hardness, capable of withstanding strong friction for extended periods and harsh conditions

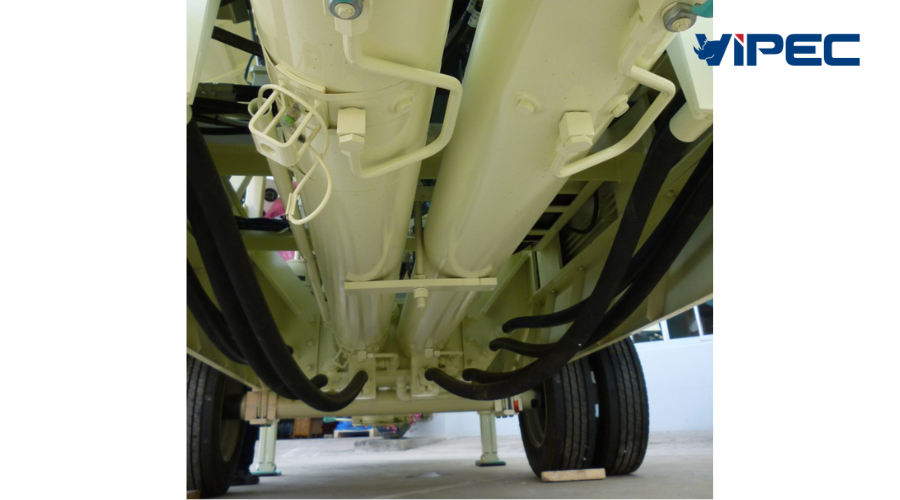

Concrete pump cylinder with chrome plating inside, high hardness, resistant to wear and scratches
