HYUNDAI / DAEWOO
FFH Closed-Loop
150 bar
220 bar
110 m3/h
70 m3/h
Max Pumping Capacity (Rod Side)
110 m3/h
Max Pumping Capacity (Piston Side)
70 m3/h
Max Pumping Pressure (Rod Side)
150 bar
Max Pumping Pressure (Piston Side)
220 bar
Max Aggregate Size
40 mm
Approximate Weight (excluding chassis)
6125 kg
Hydraulic System
FFH Closed-Loop
Main Pump
2 x A4VG180
Concrete Pumping Cylinder
230 x 2100 mm
Number of Strokes*
30/20
S-Valve
200 x 180 mm
Hopper Capacity
600 L
Outlet Diameter
6''
Hydraulic Outriggers
Rear
Engine Power
294/397 kW (DOOSAN)

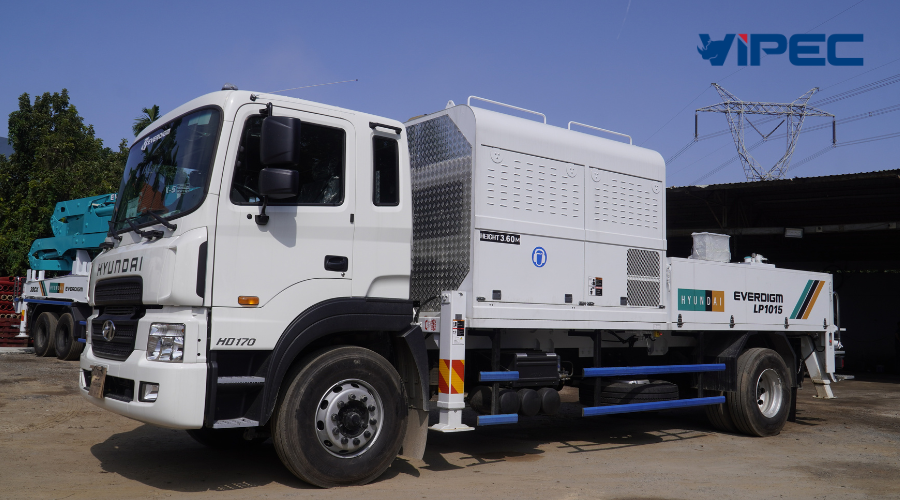

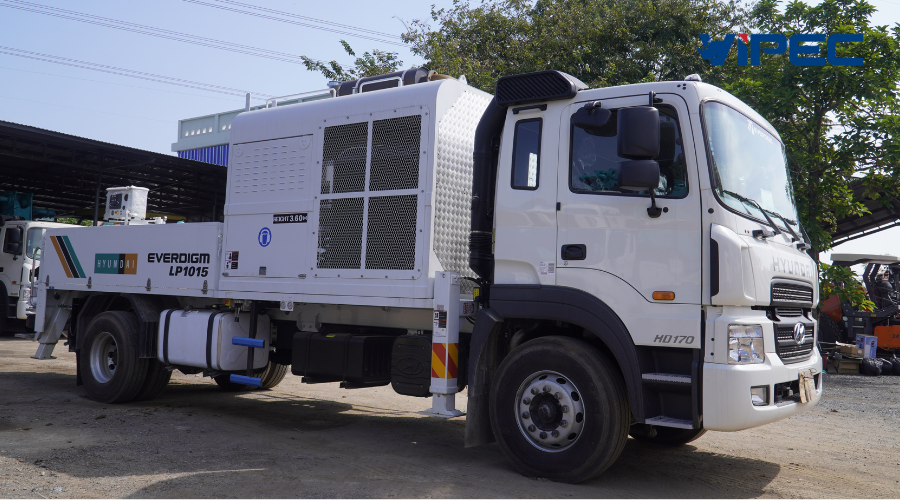

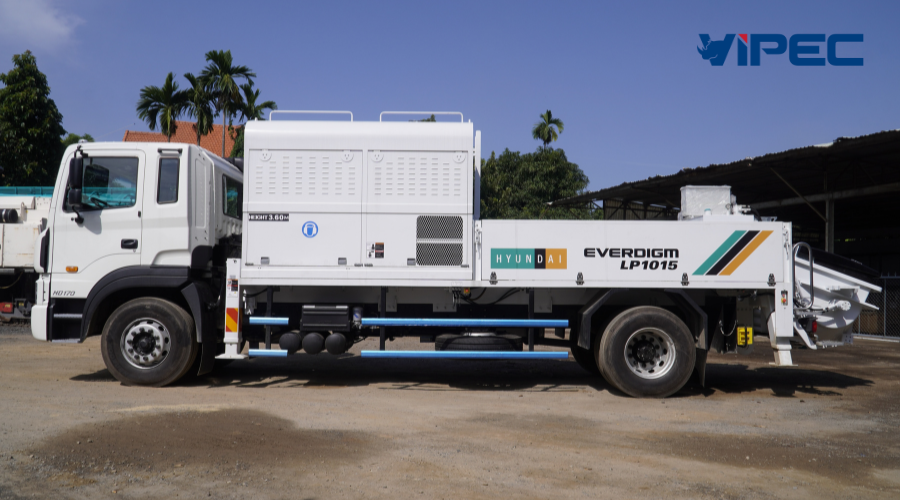

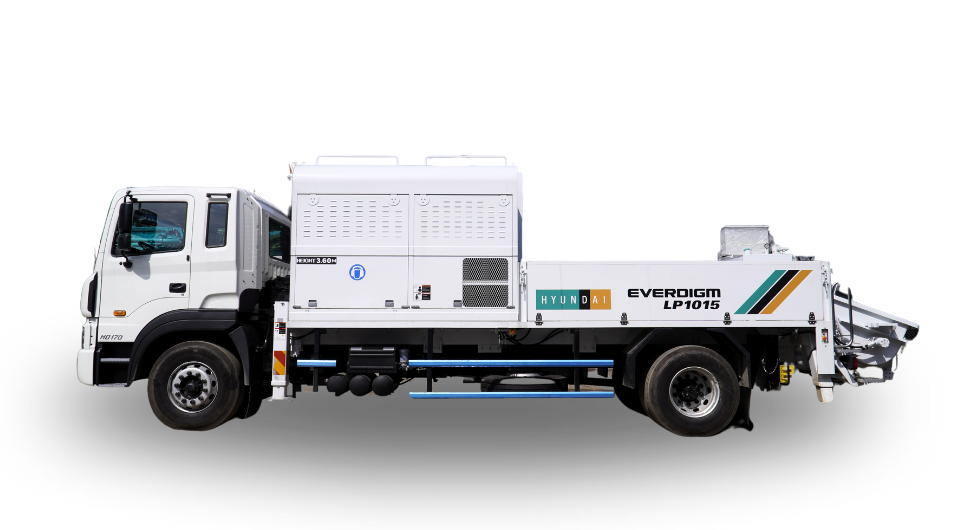

Powerful HYUNDAI or DAEWOO chassis
Equipped with REXROTH (Germany) closed-loop hydraulic system (FFH), for efficiency and economy
STIEBEL (Germany) pump gearbox ensures superior durability and stable operation in all conditions
REXROTH (Germany) hydraulic swing pump provides continuous and stable flow, along with superior durability

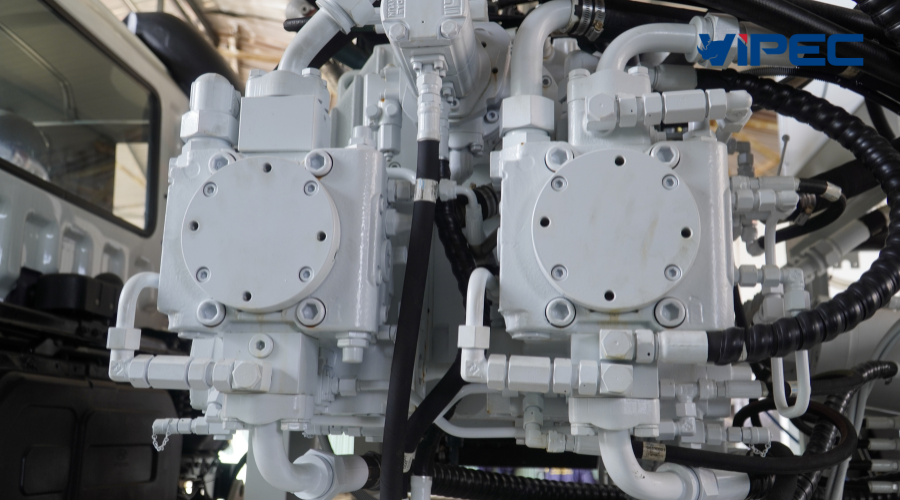

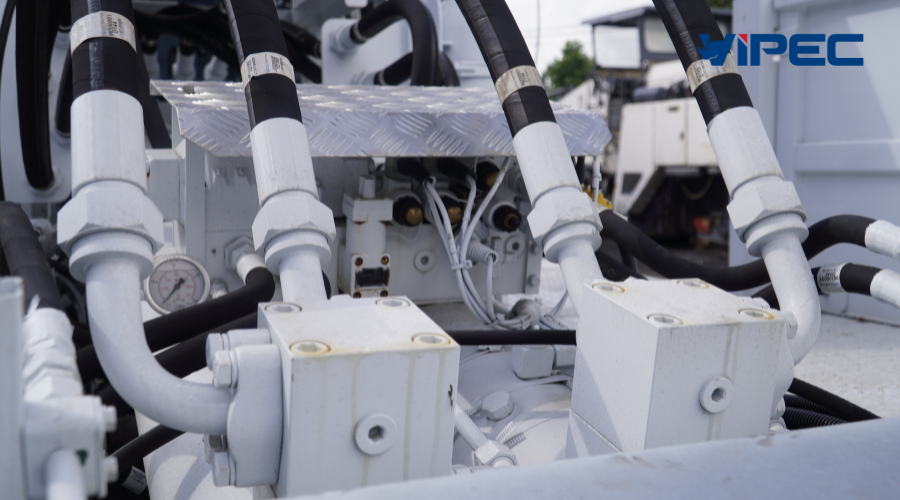

BOSCH REXROTH (Germany) main hydraulic pump unit, consisting of 2 coaxial pumps, enhancing performance
Φ60 high-pressure swing cylinder with new design, equipped with additional shock absorbers, extremely safe and durable
LINCOLN (USA) automatic greasing system, combined with a manual pump, increases safety in case of automatic greasing system failure
Side guards comply with Ministry of Transport standards, enhancing equipment safety
Vehicle floor made of aluminum alloy, anti-slip, wear-resistant, rust-proof, and aesthetically pleasing
Tilt angle level indicator, easy to monitor equipment stability
Newly designed hopper system with 2 hydraulic motors controlling agitator blades on both sides, preventing concrete segregation and clogging
Hopper cover made of Composite, durable, lightweight, and aesthetically pleasing
S2015 Valve – Large opening, prevents aggregate segregation and clogging, high durability
Tungsten wear plate and wear ring with high hardness, withstand strong friction for extended periods and harsh conditions

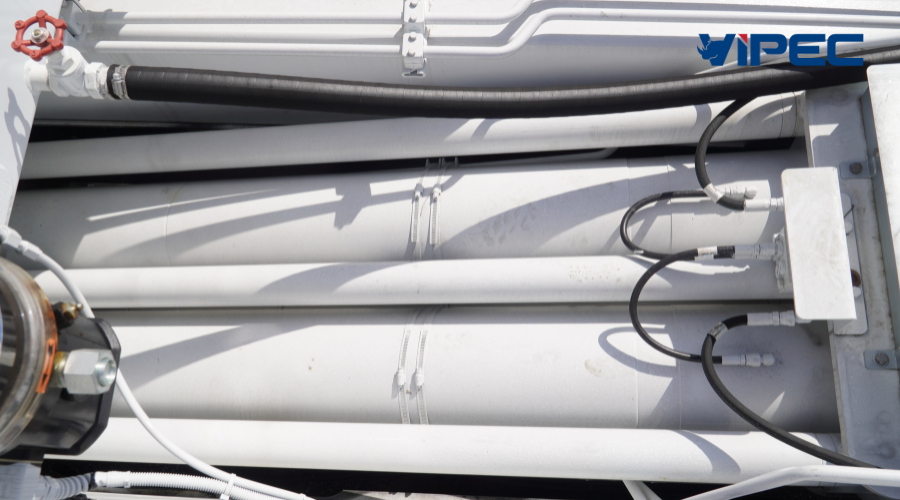

Chrome-plated concrete pumping cylinder, high hardness, wear and scratch resistant
Double-layer reducing pipe (reducer) 150-125mm. Inner layer is a wear-resistant compound according to Korean standards, increasing durability and load-bearing capacity

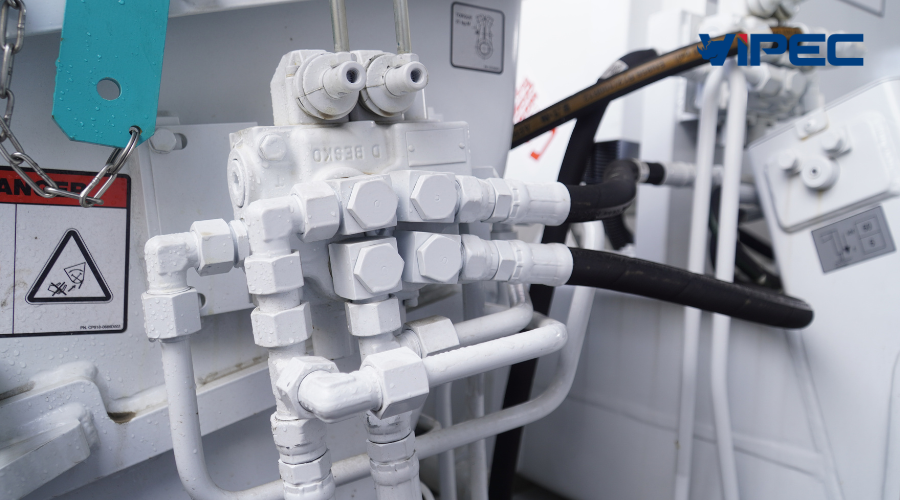

HAWE (Germany) hydraulic anti-slip valve for outriggers, safe and highly durable
Pump piston seal made of high-quality, monolithic cast rubber, designed to push concrete within the pumping cylinder
