|Product|Hyundai Everdigm EPT03002WF Medium Fire Truck

Hyundai Everdigm EPT03002WF Medium Fire Truck

  • Model:

    EPT03002WF

  • Type:

    Medium Fire Truck

  • Water Tank:

    3,000 l

  • Foam Tank:

    200 l

  • Country of Manufacture:

    South Korea

  • Location:

    Nationwide

TECHNICAL SPECIFICATIONS

*Maximum value calculated according to theory

Basic Parameters

  • Fire Monitor Flow Rate

    2,800 LPM @ 8.5bar

  • Water Tank

    3.000 l

  • Foam Tank

    200 l

  • Water Monitor

    Manual Control 3800 l/min

  • Foam System

    Equipped around pump

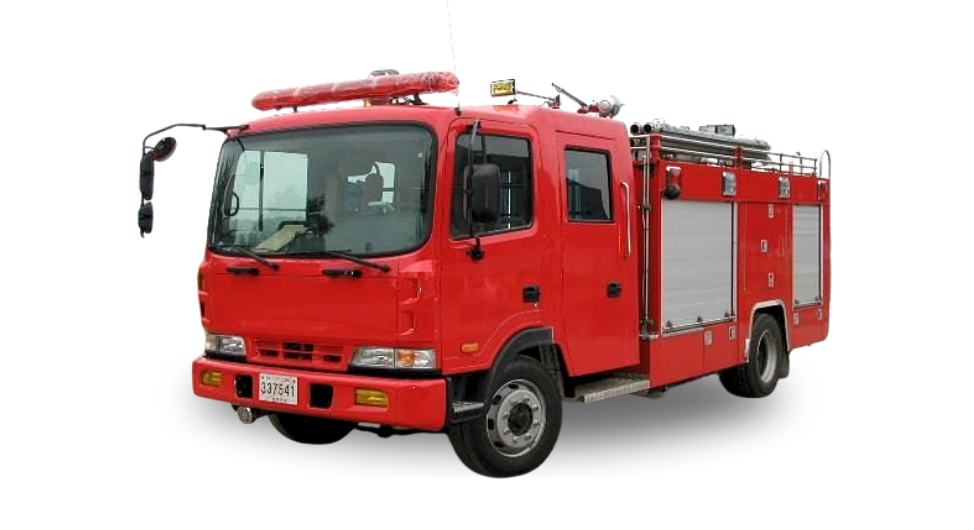

  • The Hyundai Everdigm EPT03002WF medium fire truck uses a Hyundai HD 120 chassis, powered by a direct-injection turbocharged diesel engine with a maximum output of 225PS, reaching a top speed of 130km/h;

  • The water tank is constructed from corrosion-resistant stainless steel (STS304) with a capacity of 3,000 liters;

  • The foam tank is constructed from corrosion-resistant stainless steel (STS316L) with a capacity of 200 liters of foam;

  • The vehicle is equipped with a roof-mounted monitor for water/foam discharge, with a flow rate of 3,800 liters/minute at 10 bar pressure, a throw range of 60m, 360° rotation, 75° upward tilt, and 45° downward tilt;

  • The centrifugal fire pump features a corrosion-resistant lightweight bronze (BRC) pump body and a nickel-chrome (stainless steel) pump shaft. The flow rates are 3,800 liters/minute at 12kg/cm2 with a 41mm nozzle diameter, 2,820 liters/minute at 8.5kg/cm2 with a 38.5mm nozzle diameter, and 2,054 liters/minute at 14kg/cm2 with a 29mm nozzle diameter.
