HYUNDAI / DAEWOO
Closed-loop FFH
160 m3/h
85 bar
Euro 5
Folding type
5 sections - RZ
Max. vertical reach
47.1 m
Max. horizontal reach
42.1 m
Max. depth reach
33.1 m
Minimum Unfolding Height
12 m
Boom Slewing Angle
360°
End Hose Length
3 m
Delivery Pipe Diameter
125 mm
Pump Configuration
2116
Control System
Closed-loop FFH
Main Pump (2 coaxial pumps)
A4VG125 x 2
Concrete Cylinder
230 x 2100 mm
Number of Strokes*
30 strokes/min
Concrete Output*
160 m3/h
Concrete Pressure*
85 bar
S-Valve Type
S-Valve, S2318 (D.230 - 180mm)
Hopper Capacity
600 L

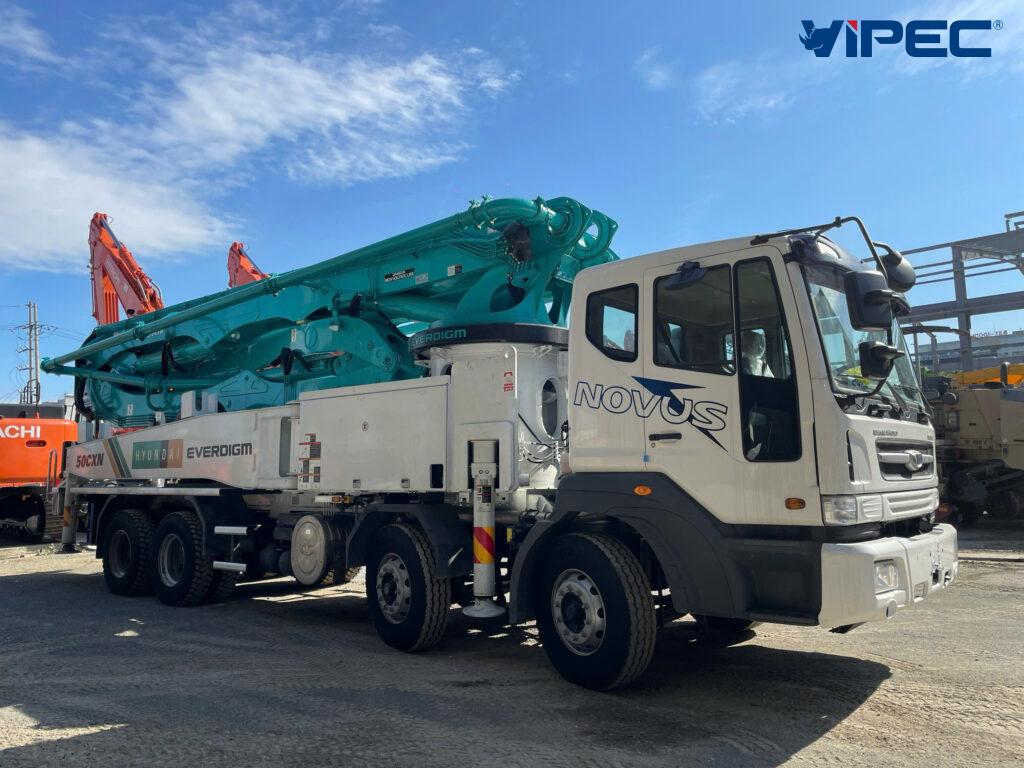

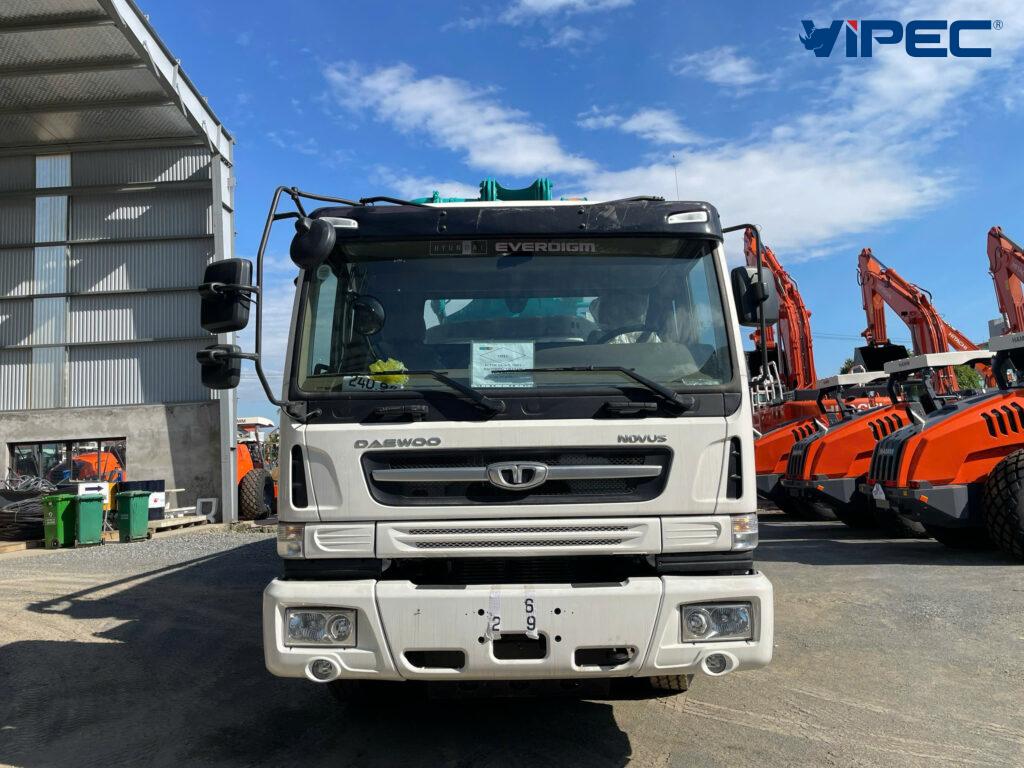

Powerful HYUNDAI or DAEWOO chassis
Equipped with REXROTH – Germany closed-loop (FFH) control system, high efficiency and economical
STIEBEL – Germany pump gearbox, ensuring superior durability and stable operation in all conditions
HAWE – Germany valve block & hydraulic control lever assembly for the concrete pump boom, long durability and lifespan, easy operation, precise and flexible control
REXROTH – Germany hydraulic S-valve pump, continuous and stable flow supply, along with superior durability
BOSCH REXROTH – Germany main hydraulic pump unit, consisting of 2 coaxial pumps, enhancing efficiency
Central control cabinet, modular design and equipped with a display screen, making it easy to monitor the equipment’s operating status
REXROTH – Germany slewing gearbox and hydraulic motor, flexible speed adjustment, durable operation for extended periods
High-pressure Φ60 Concrete Cylinder / S-valve rod with new design, equipped with an additional damper, extremely safe and durable
Equipped with a very convenient vehicle cleaning system: Hydraulic water pump (30 bar), water tank (400 liters), hose set, and high-pressure nozzle (15m)
The concrete pump boom’s slewing column & base feature a streamlined and improved design, enhancing balance, stability, load capacity, and force distribution for the equipment during operation
8 sets of super bright 24W LED lights are fully arranged around the sides of the vehicle, making it easy to work day or night
High-quality double-layer concrete delivery pipe, with a lifespan of up to 100,000m3 of standard concrete
LINCOLN – USA automatic greasing system, combined with a manual pump, increasing safety in case of automatic greasing system failure
Spare concrete delivery pipe holder is readily equipped on the outrigger beam, very neat and convenient
Vehicle side guard according to Ministry of Transport standards, increasing equipment safety
New generation HBC – Germany wireless receiver and control unit, waterproof, reduced signal interference, ensuring efficient and safe operation
The vehicle floor is made of aluminum alloy, anti-slip, wear-resistant, rust-resistant, and aesthetically pleasing
Tilt angle balance indicator, easy to monitor equipment stability
Hopper system with new design, 2 hydraulic motors controlling agitator blades are equipped on both sides, preventing concrete segregation and clogging
Extremely durable, long-life concrete delivery elbow #1. Now with a hole for cleaning ball insertion
The concrete pump boom system is manufactured from high-quality Japan-Austria DIN STE890 (European) steel, robust, with good elasticity and high oxidation resistance
Hopper cover made of Composite, durable, lightweight, and aesthetically pleasing
S2318 S-valve – Large opening, prevents stone segregation and clogging, high durability
Dynamic and static wear plates made of high-hardness Tungsten material, capable of withstanding strong friction for extended periods and harsh conditions
Chrome-plated concrete pump cylinder, high hardness, wear and scratch resistant
Double-layer reducing pipe (reducer) 150-125mm. The inner layer is a wear-resistant compound according to Korean standards, increasing durability and load-bearing capacity
HAWE – Germany hydraulic anti-slip valve for outriggers, safe and highly durable
