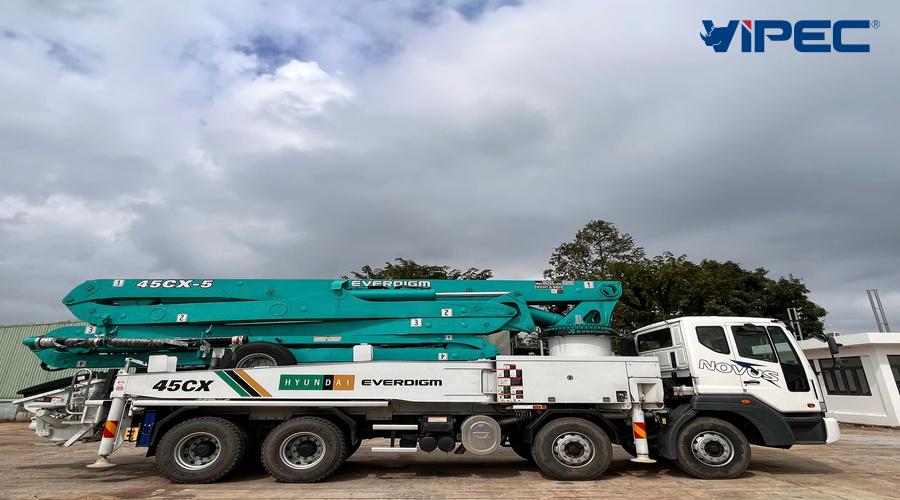

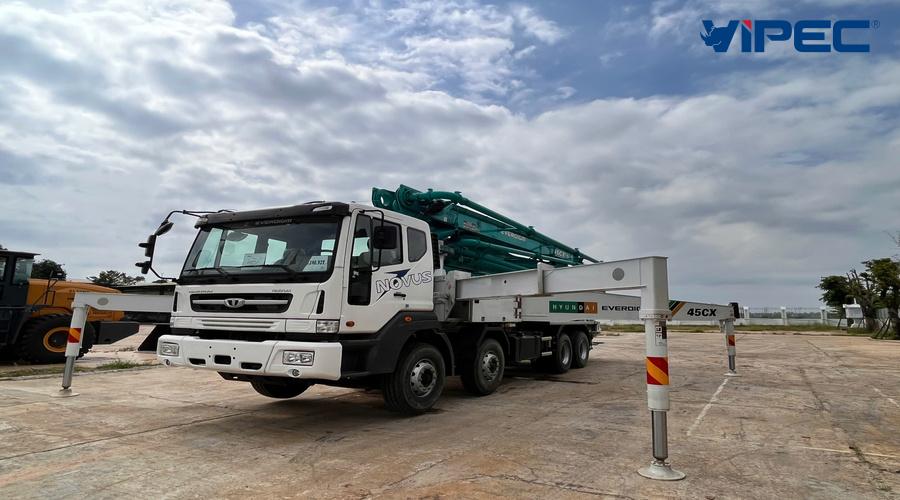

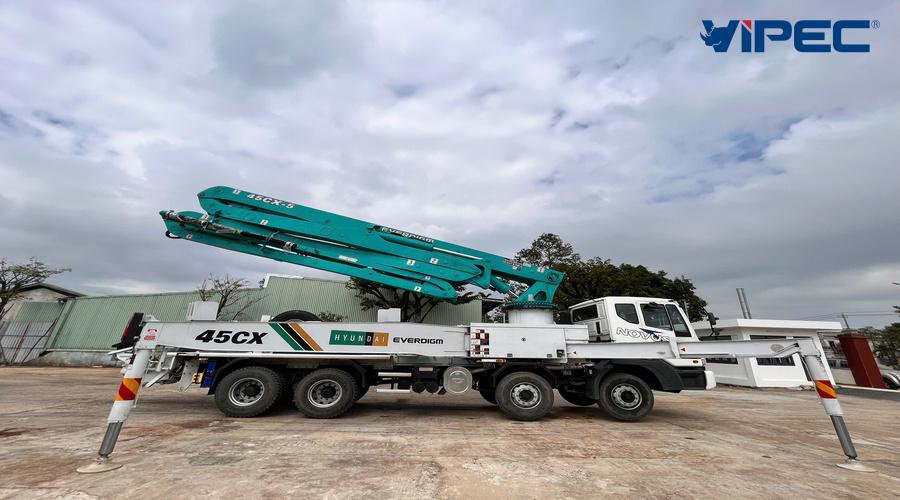

Hyundai HD320
FFH Closed-Loop Hydraulic System
A4VG125HD x 2
37.5 m
42.1 m
160 m3/h
85 bar
Euro 4
2022 - 2023
South Korea
Da Nang
New, unused machine

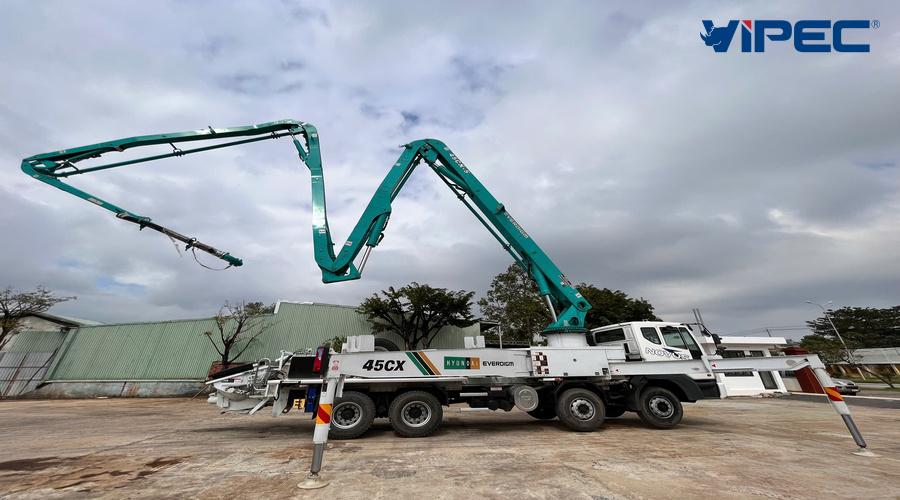

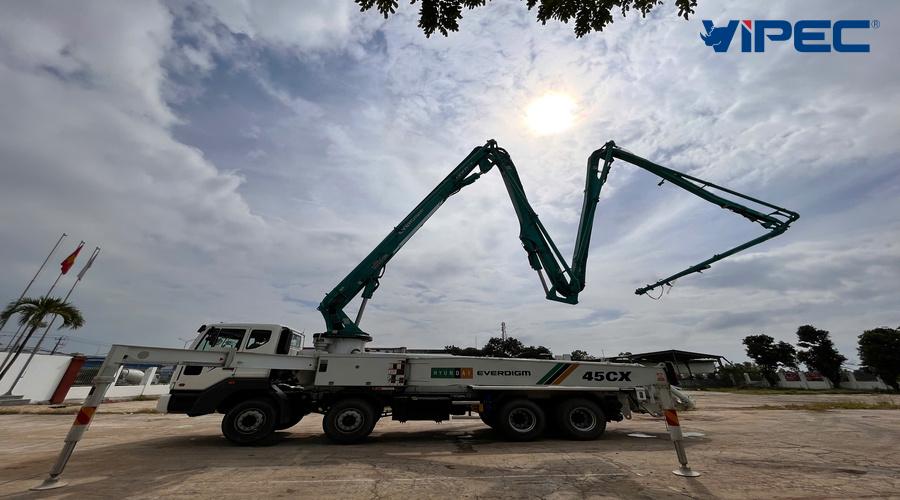

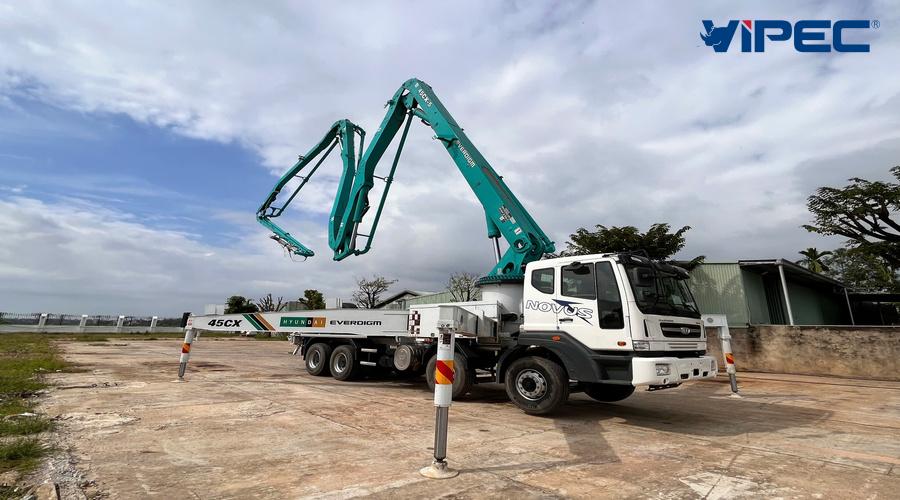

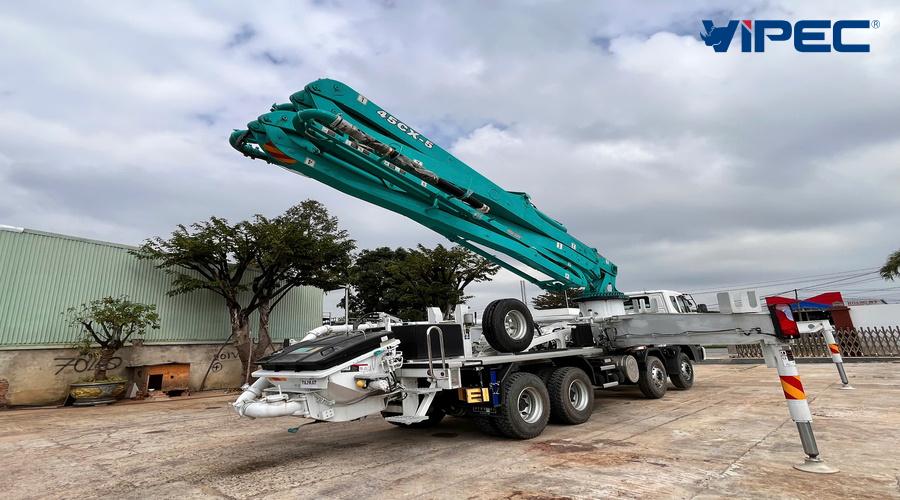

Boom Folding Type
5-section - ZR-fold type

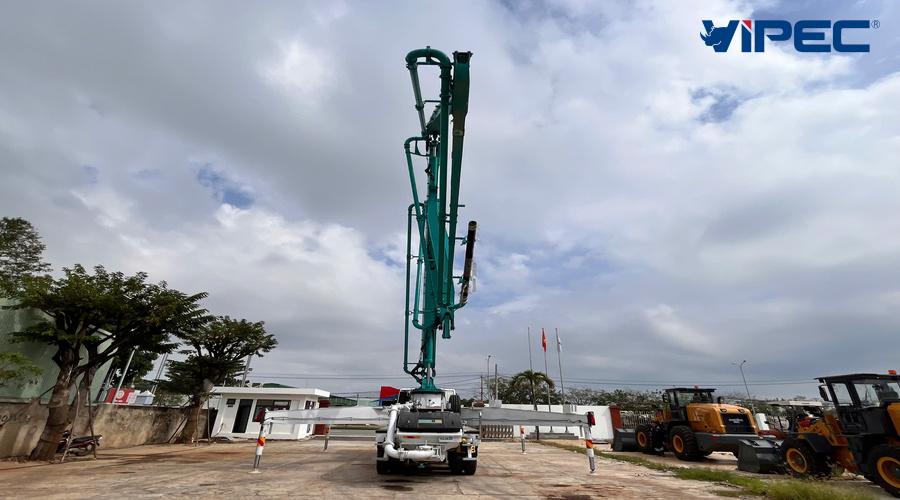

Max Vertical Reach
42.1 m
Max Horizontal Reach
37.5 m
Max Deep Reach
29.1 m
Safe Unfolding Height
8.3 m
Boom Rotation Angle
360 degrees
End Hose Length
3 m
Pumping Pipe Diameter
125 mm
Pump Configuration
2116
Hydraulic System
FFH Closed-Loop Hydraulic System
Main Pump (2 coaxial pumps)
A4VG125HD x 2
Concrete Pumping Cylinder
230 x 2.100 mm
Strokes per minute*
30 strokes/min
Concrete Pumping Capacity*
160 m3/h
Concrete Pumping Pressure*
85 bar
S-Valve Type
S-Valve, S2318 (D.230 - 180mm)
Hopper Capacity (liters)
600 l

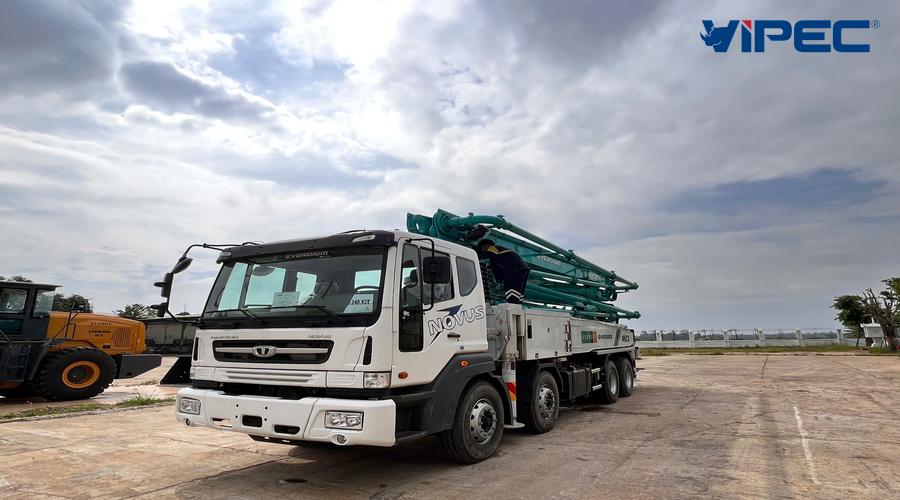

Powerful Hyundai HD260 chassis
Wood-paneled cabin, power windows, extended cabin space (double cabin)
Premium air suspension seat for comfortable operation
Electric cabin lift
Tubeless tires
Euro 4 emission standard, exhaust gas recirculation engine – double combustion, no Adblue solution required
FFH Closed-Loop Hydraulic System – Germany, efficient and economical
STIEBEL Pump Gearbox – Germany
HAWE Boom Control Valve Block – Germany
REXROTH Hydraulic Pump System – Germany
Main Pump: 02 BOSCH REXROTH Coaxial Pumps – Germany
Modular electrical control box, equipped with a display screen for equipment operating status
REXROTH Slewing Reducer and Motor – Germany
New high-pressure S-valve cylinder
Vehicle cleaning water pump system
Water pump (30 bar)
Water tank (400 liters)
High-pressure spray nozzle (15m)
Improved boom rotation pillar design. Increases balance, load-bearing capacity, and more even force distribution during operation
Work lights positioned in necessary areas
High-quality double-layer pipe, standard lifespan of 100,000m3 concrete
Auxiliary manual greasing system. LINCOLN Automatic Greasing System – Germany
Pump pipe rack on rear outrigger beam
Side guard according to Ministry of Transport standards

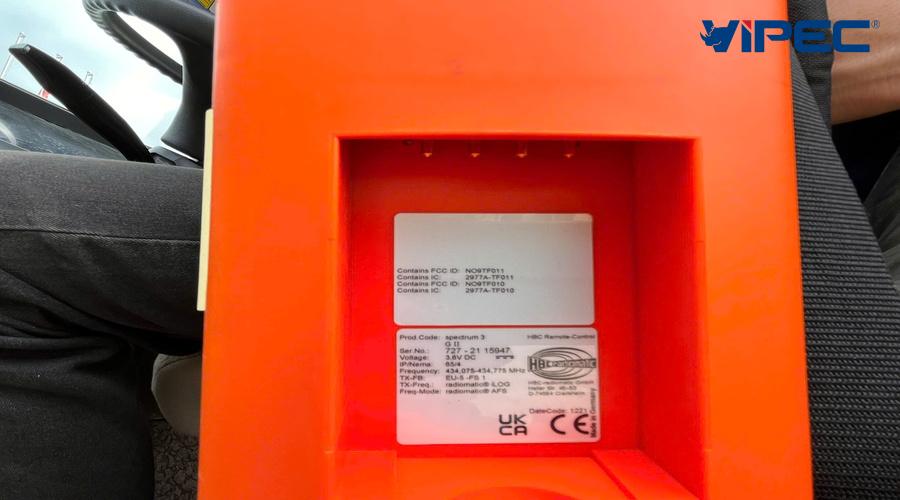

New generation HBC Wireless Remote Control – Germany
Aluminum alloy floor (anti-slip, rust-resistant)
Bubble level for equipment balancing
Newly designed hopper, prevents concrete segregation and clogging. Two hydraulic agitator motors on both sides
High-durability tail pipe #1, with cleaning ball access hole
High-quality boom steel system Japan-Austria DIN STE890 (Europe)
Durable, lightweight, and aesthetically pleasing Composite hopper cover
Single-lip pump seal
S2318 S-Valve – Large Opening (Prevents aggregate segregation, stone clogging)
Wear ring – Tungsten Carbide wear plate, high durability
Chrome-plated Concrete Pumping Cylinder (High durability)
Double-layer reducing pipe (150 – 125mm)
HAWE Anti-drop Valve for Outriggers – Germany
