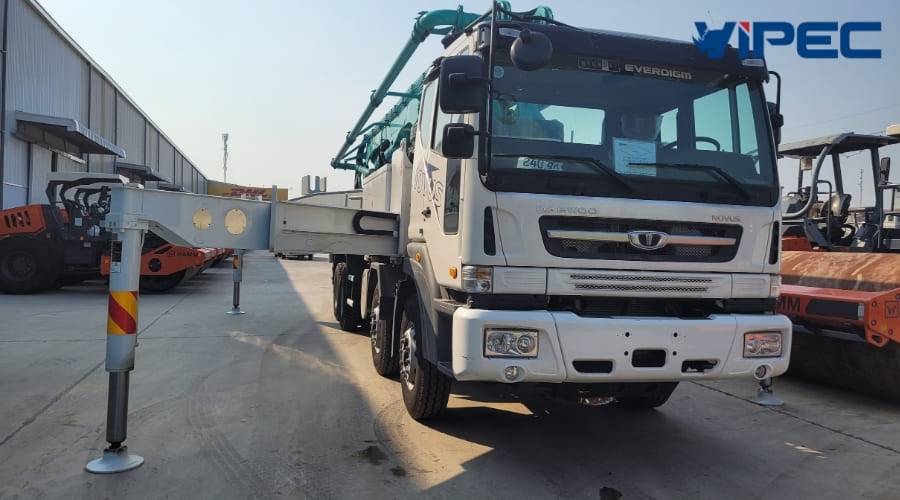

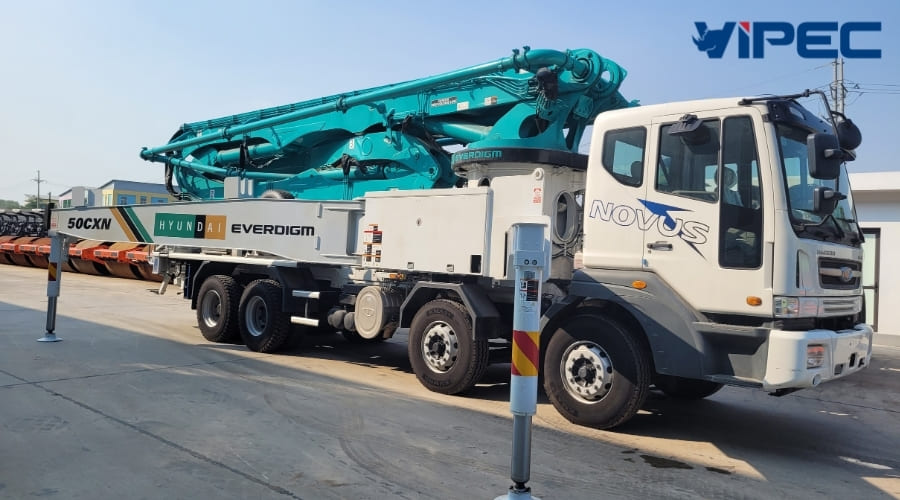

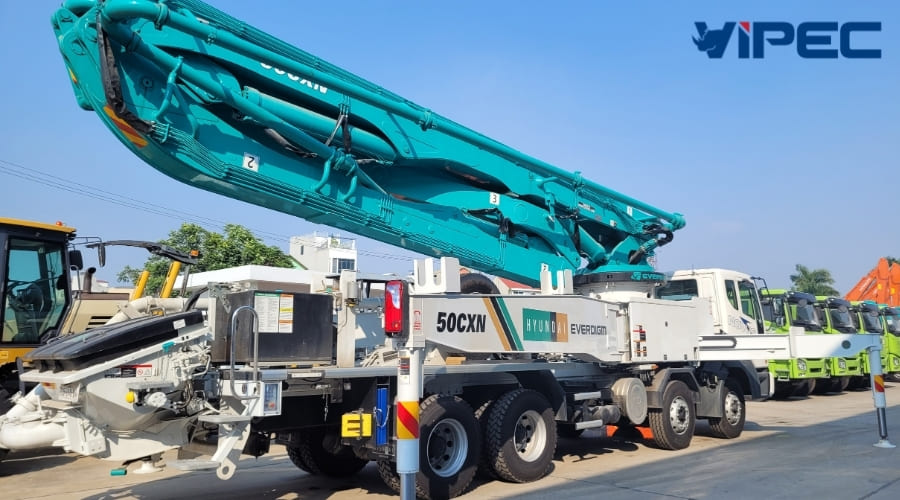

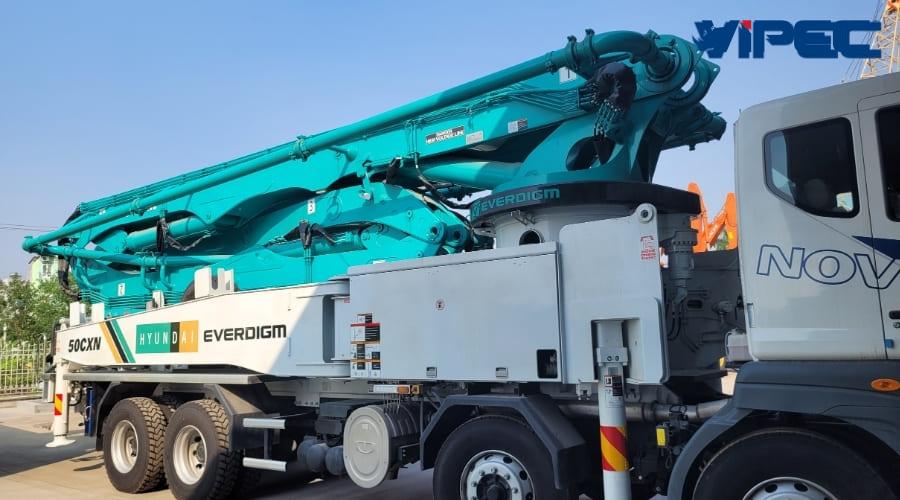

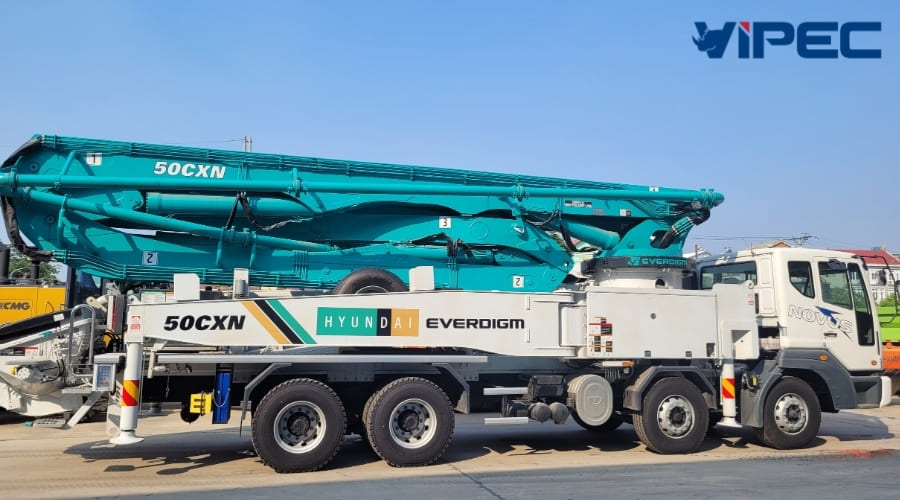

Hyundai HD320
Closed-loop FFH hydraulic system
A4VG125HD x 2
42.1 m
47.1 m
160 m3/h
85 bar
Euro 5
2022 - 2023
South Korea
Hanoi
New, unused machine

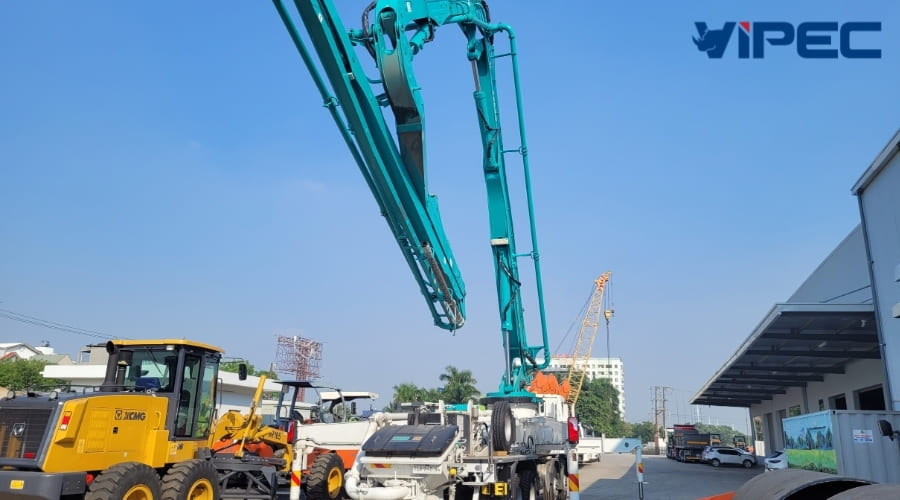

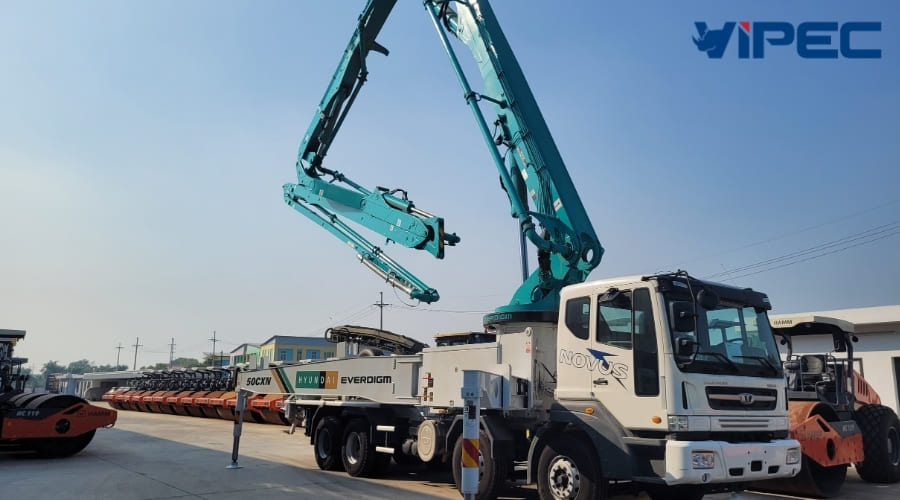

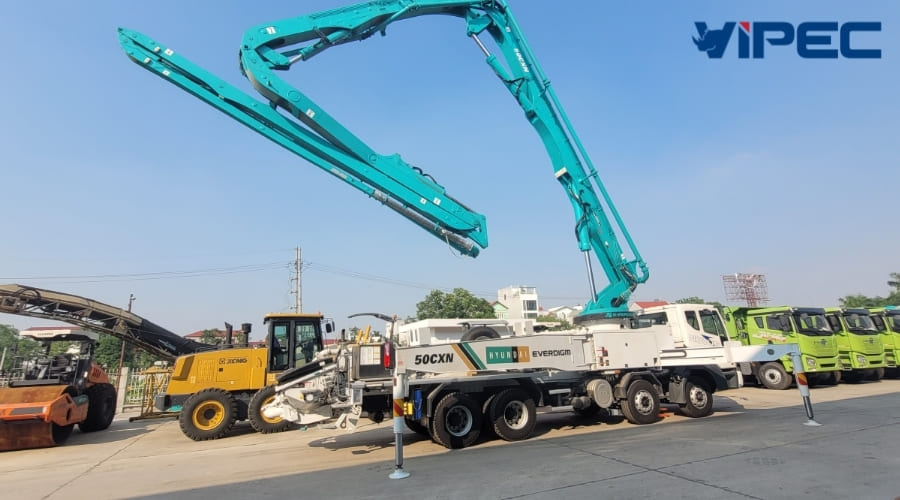

Boom Folding Type
5-section - ZR-fold type
Max Vertical Reach
47.1 m
Max Horizontal Reach
42.1 m
Max Deep Reach
33.1 m
Safe Boom Unfolding Height
12 m
Boom Rotation Angle
360 degrees
End Hose Length
3 m
Delivery Pipe Diameter
125 mm
Pump Configuration
2116
Hydraulic System
Closed-loop FFH hydraulic system
Main Pump (2 coaxial pumps)
A4VG125HD x 2
Concrete Delivery Cylinder
230 x 2,100 mm
Number of Full Strokes*
30 strokes/min
Concrete Pumping Capacity*
160 m3/h
Concrete Delivery Pressure*
85 bar
S-Valve Type
S-Valve, S2318 (Dia. 230 - 180mm)
Hopper Capacity (liters)
600 l

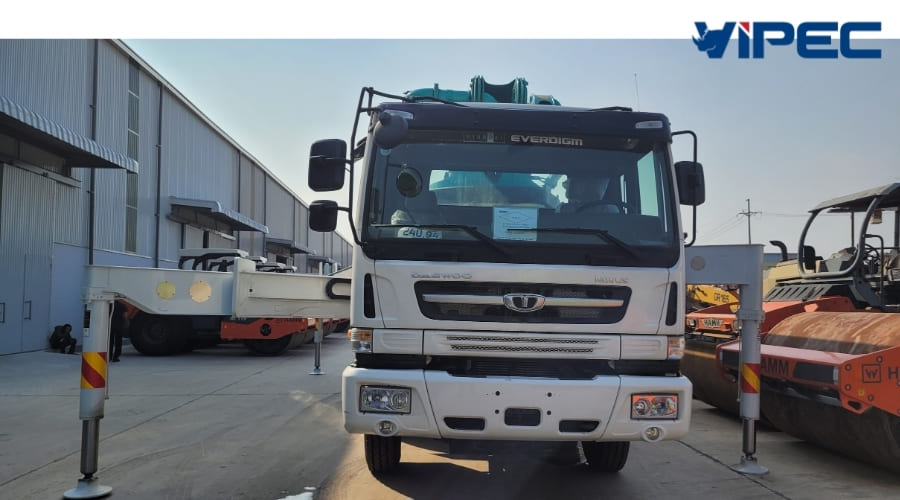

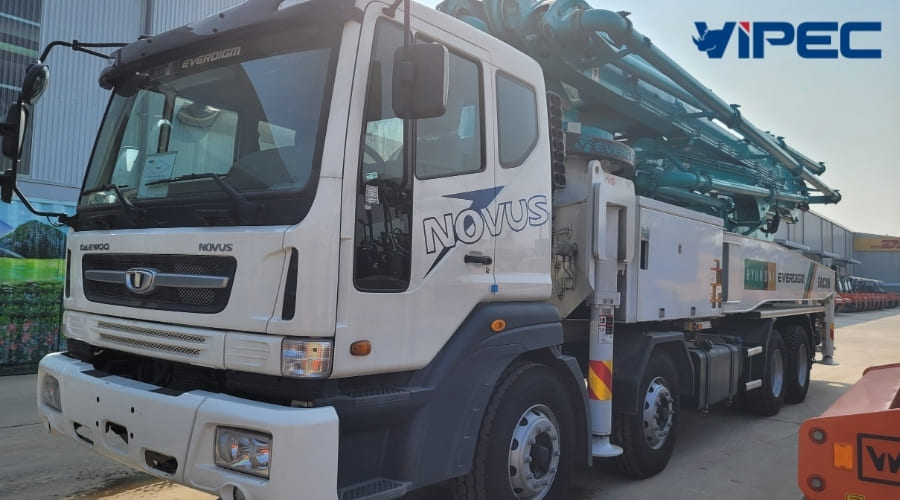

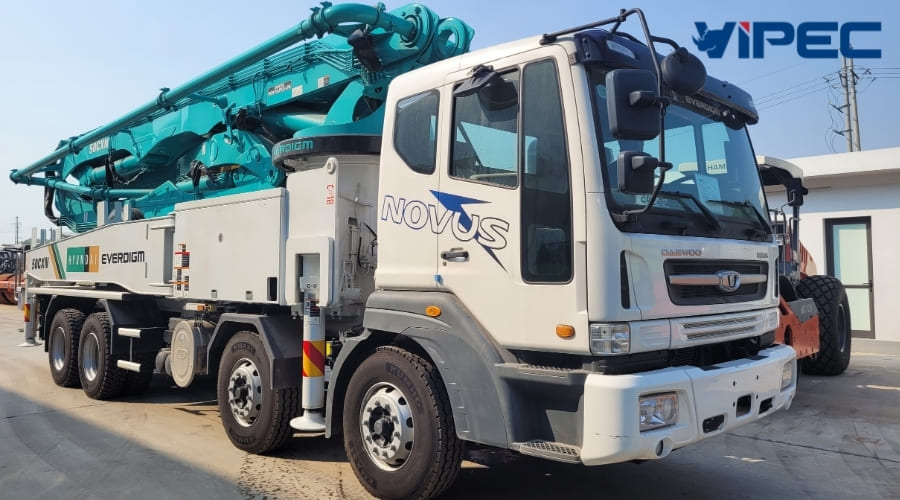

Powerful Hyundai HD260 chassis

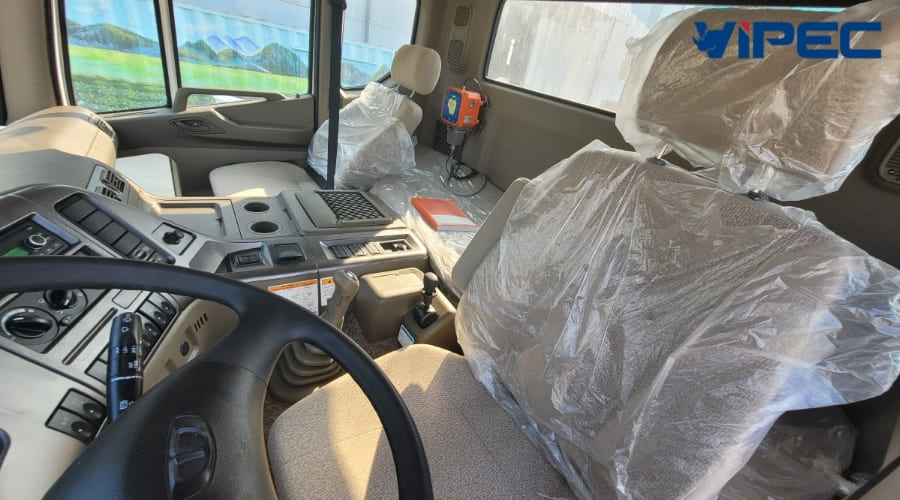

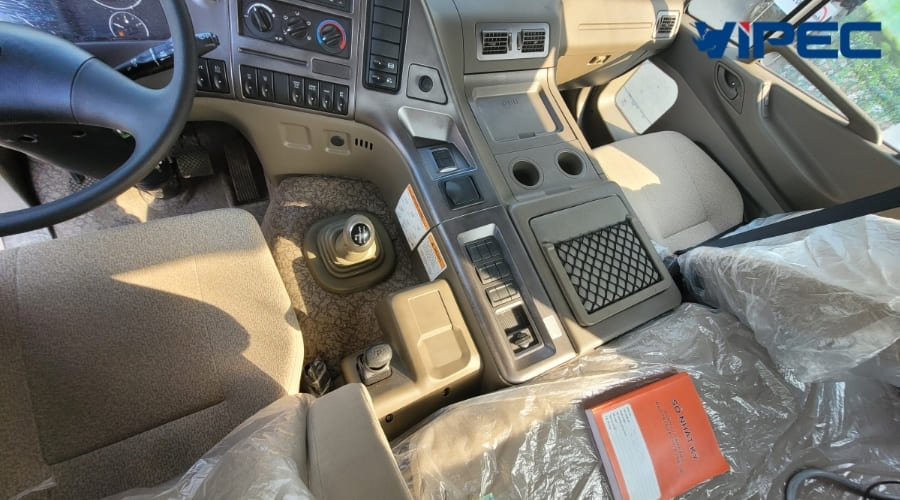

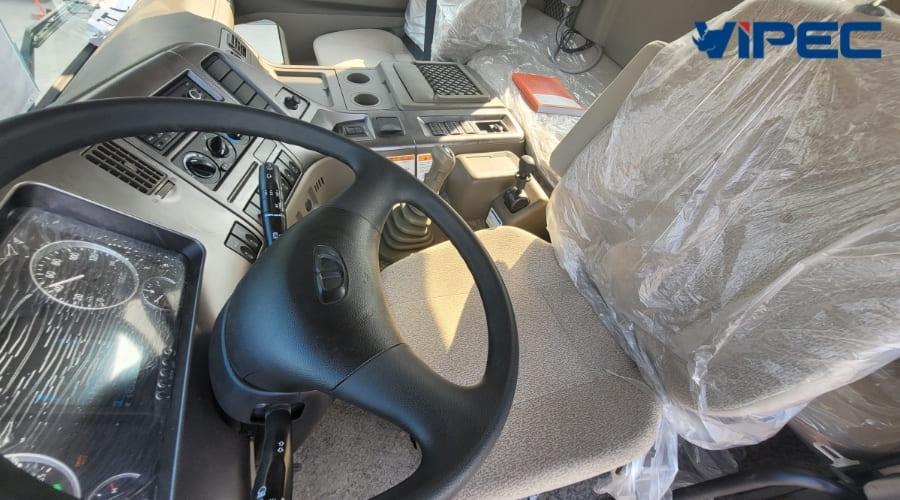

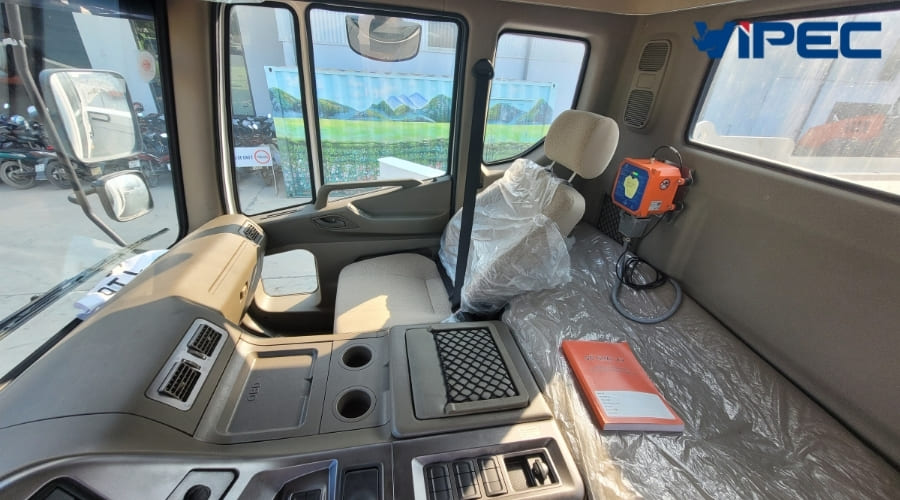

Wood-paneled cabin, electric power windows, extended cabin space (double cabin)

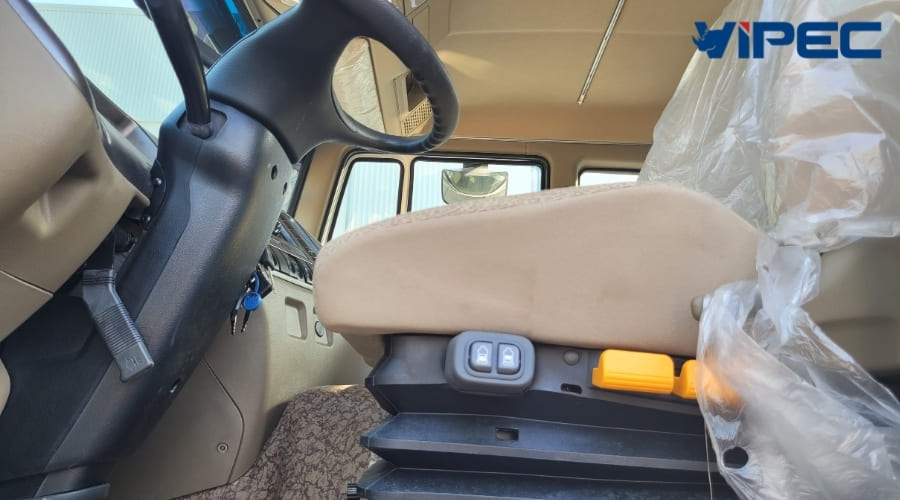

Premium air suspension seat for comfortable operation
Electric cabin tilt
Tubeless tires

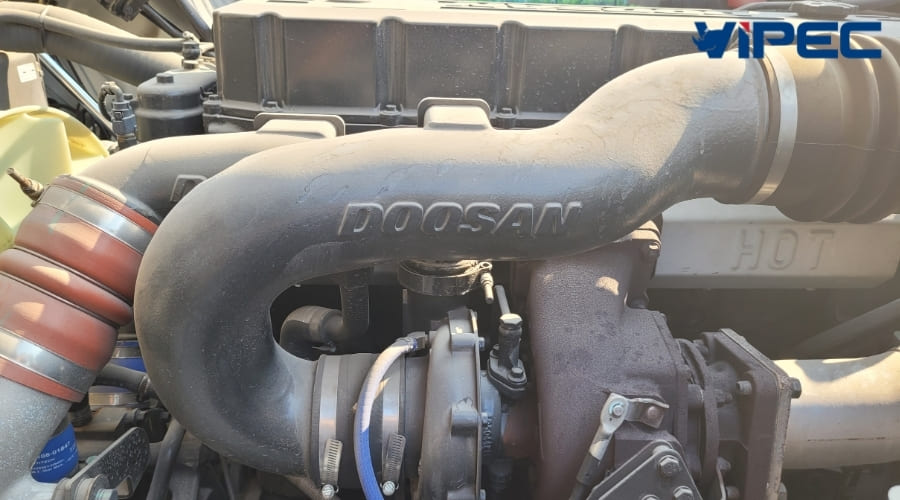

Euro 4 emission standard, exhaust gas recirculation engine – double combustion, no Adblue solution required
Closed-loop FFH hydraulic system – German, efficient and economical
STIEBEL pump gearbox – German

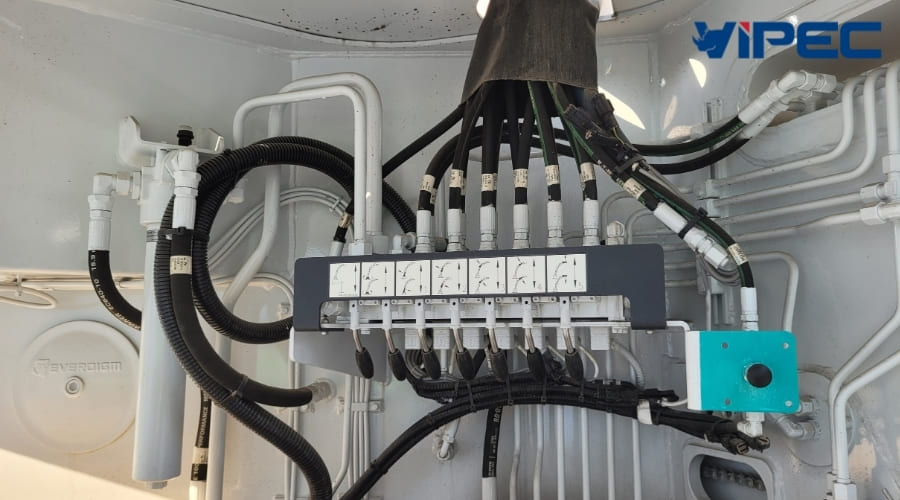

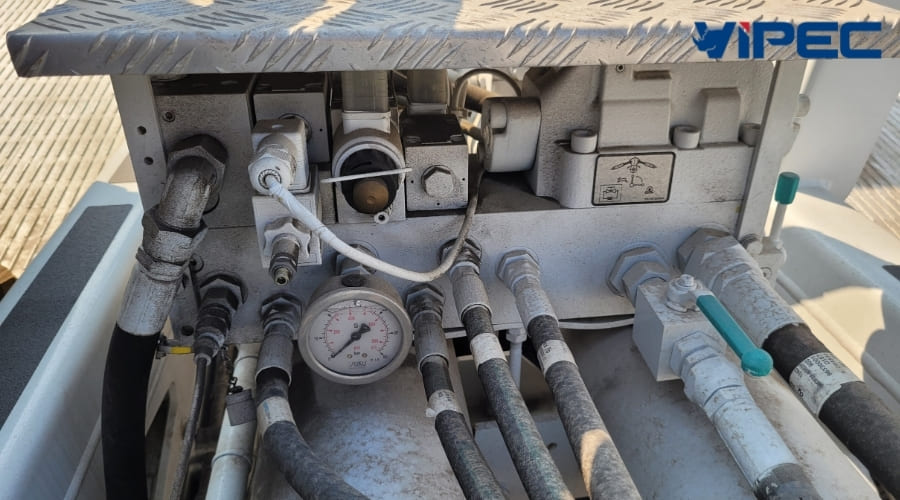

HAWE boom control valve block – German
REXROTH brand hydraulic pump system – German
Main pump: 02 BOSCH REXROTH brand coaxial pumps – German

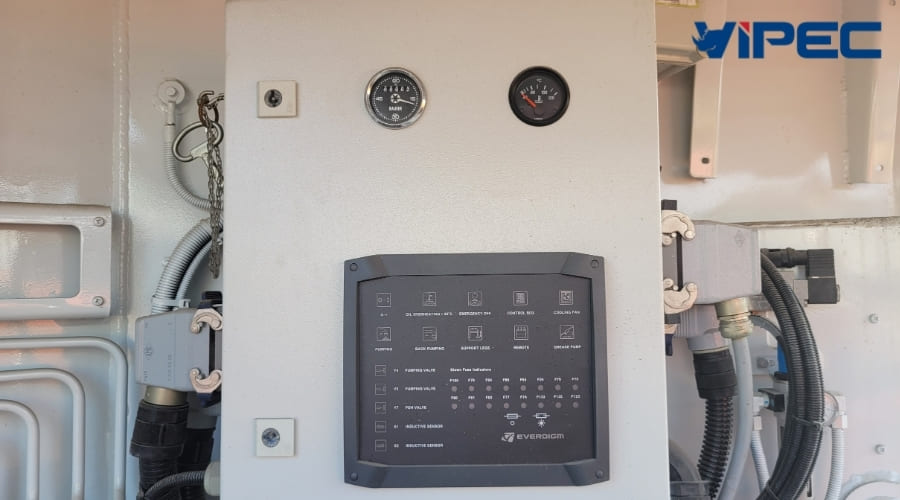

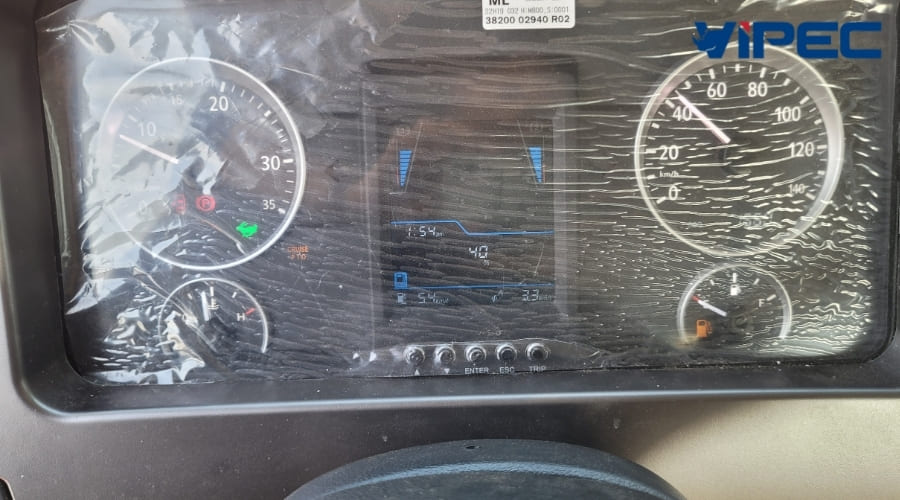

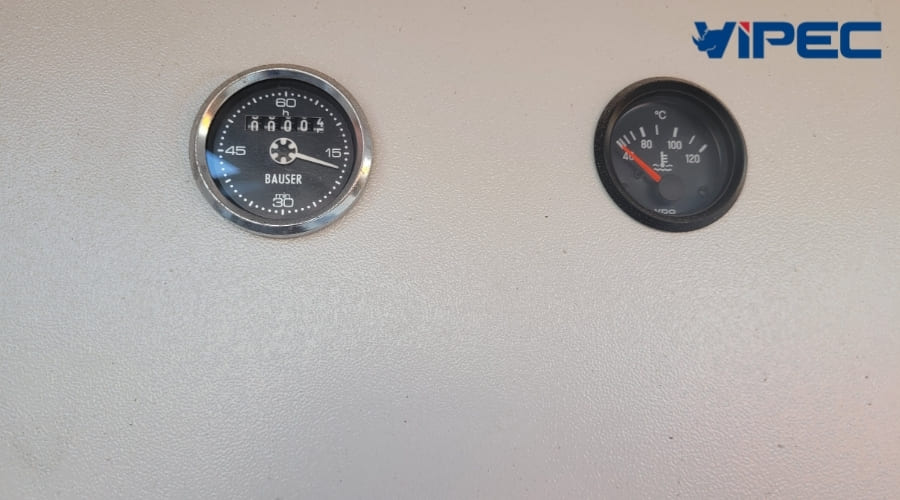

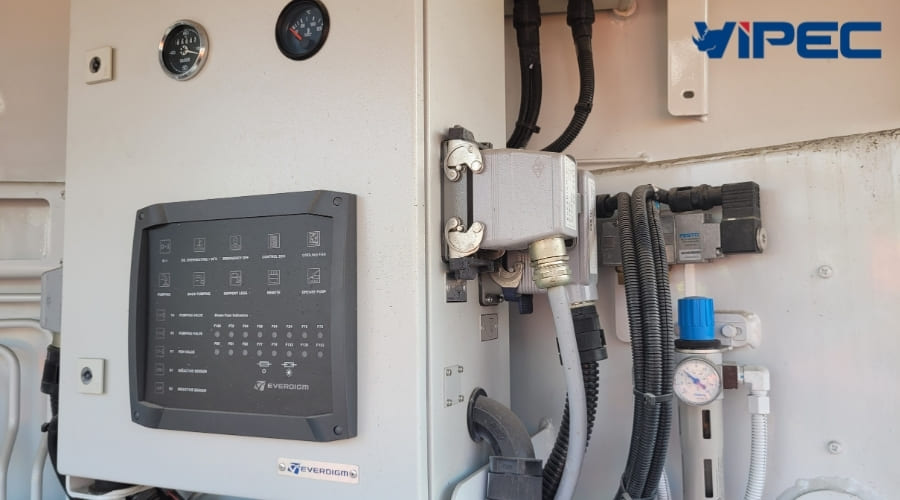

Module-type electrical control box, equipped with a display screen showing equipment operating status
REXROTH slewing reducer and motor – German
New type high-pressure swing cylinder
Vehicle cleaning water pump system
Water pump (30 bar)
Water tank (400 liters)
High-pressure spray nozzle (15m)

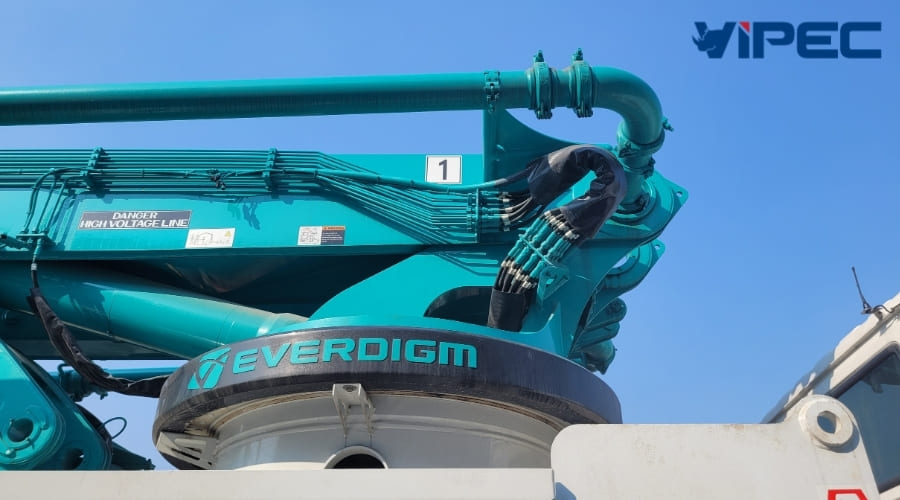

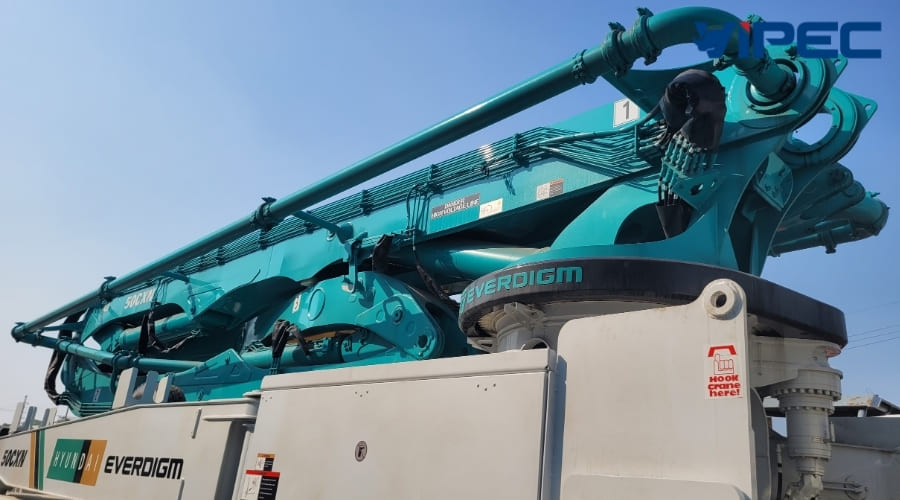

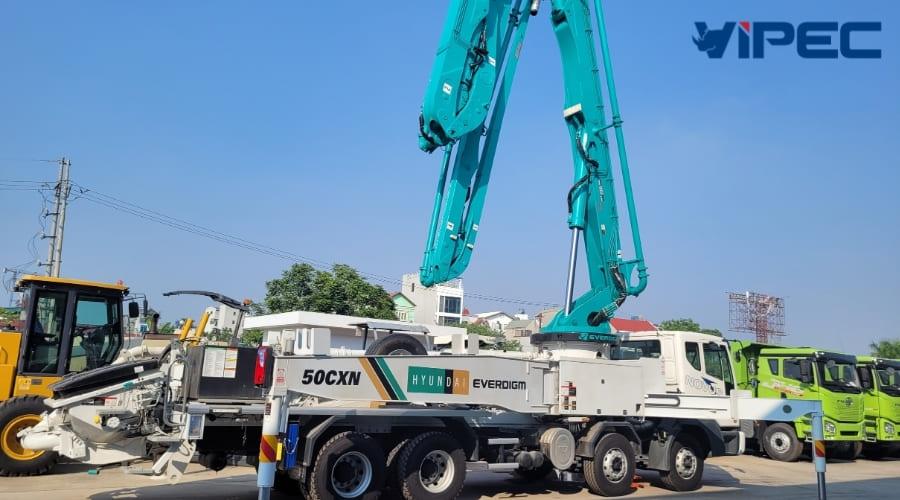

Improved boom slewing column design. Increases balance, load-bearing capacity, and distributes force more evenly during operation
Work lights are strategically placed in necessary areas
High-quality double-layer pipe, standard lifespan of 100,000m3 of concrete

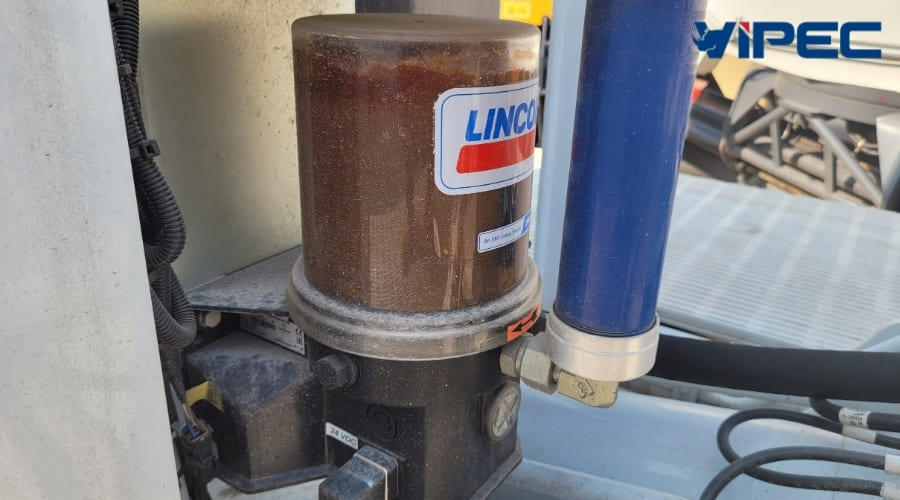

Auxiliary manual greasing system. LINCOLN automatic greasing system – German

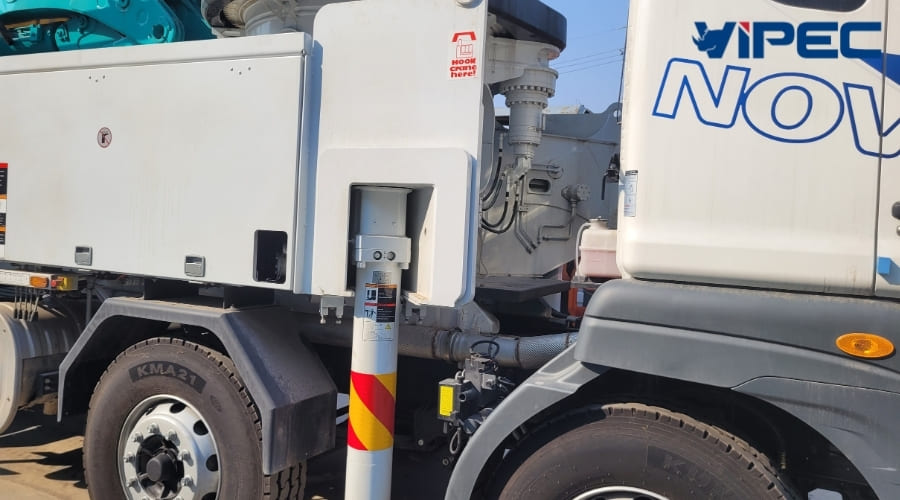

Pump pipe holder on the rear outrigger beam
Side guards comply with Ministry of Transport standards
New generation HBC wireless remote control set – German

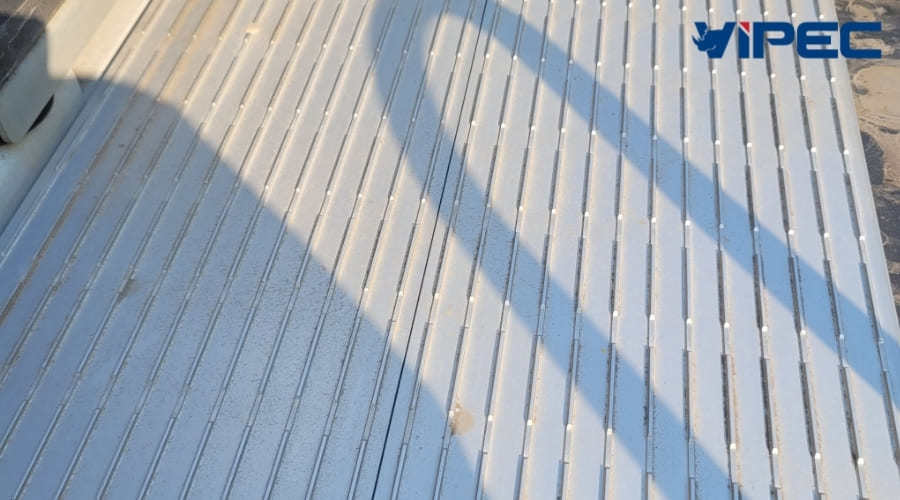

Aluminum alloy floor (anti-slip, rust-resistant)
Bubble level for equipment balancing

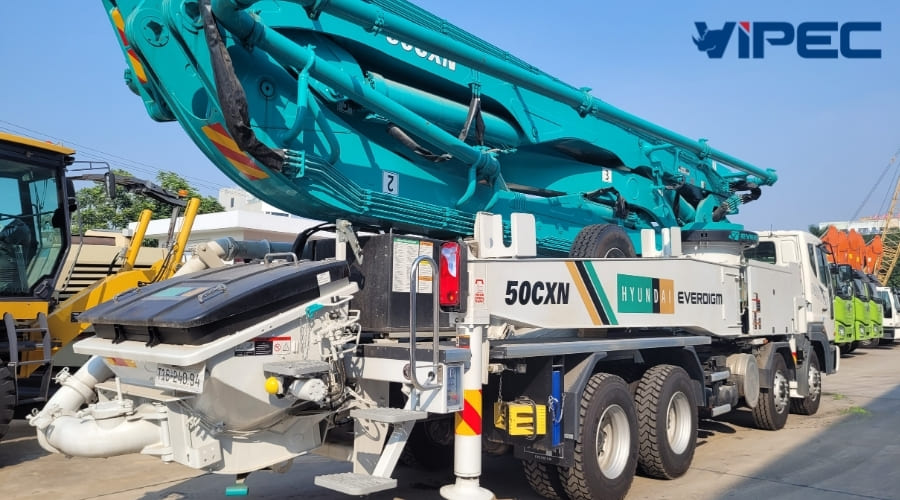

Newly designed hopper, prevents concrete segregation and clogging. Two hydraulic agitator motors on both sides

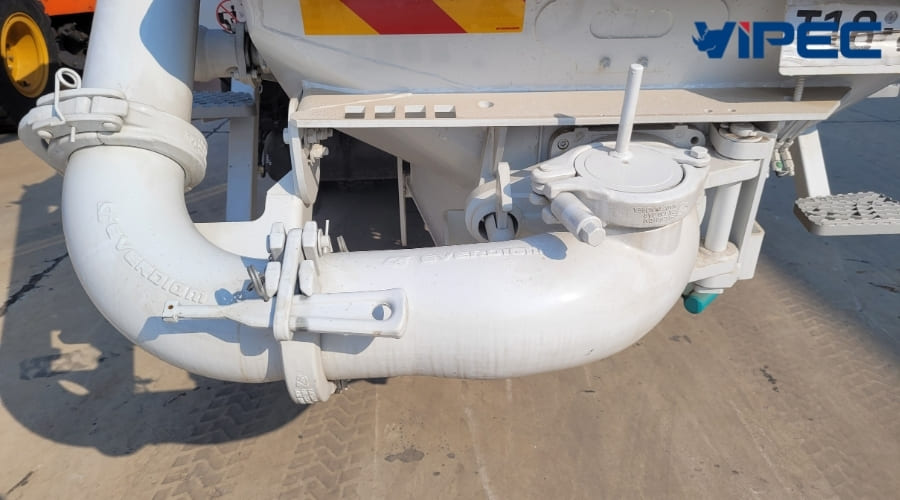

Long-life tail pipe #1, with cleaning ball insertion hole
High-quality boom steel manufacturing system Japan-Austria DIN STE890 (Europe)
Durable, lightweight, and aesthetically pleasing Composite hopper cover
Single-lip pump seal
S2318 S-Valve – Large Opening (Prevents stone segregation, stone clogging)
Wear ring – Tungsten Carbide wear plate, high durability
Chrome-plated concrete pump cylinder (High durability)
Double-layer reducing pipe (150 – 125mm)

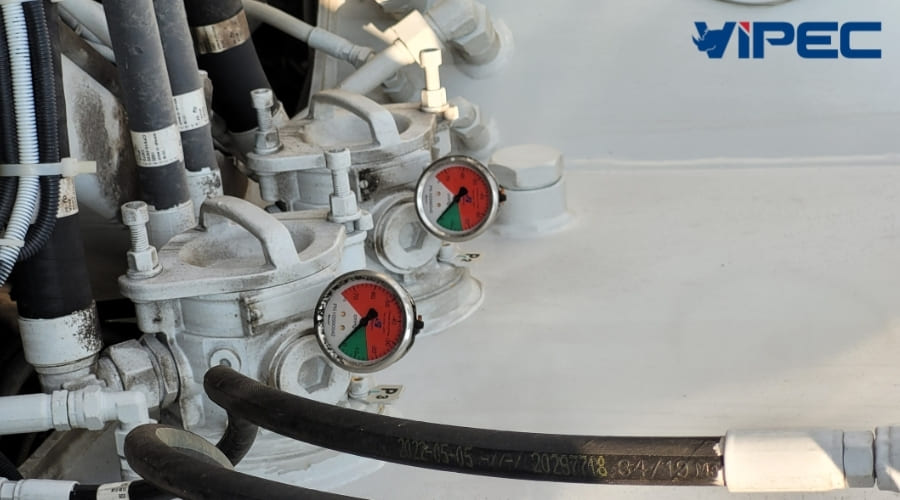

HAWE anti-drop valve for outriggers – German
