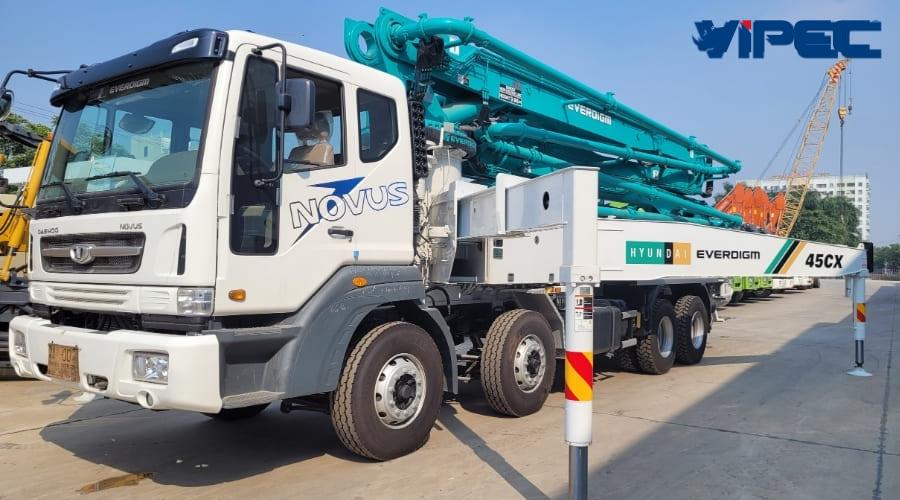

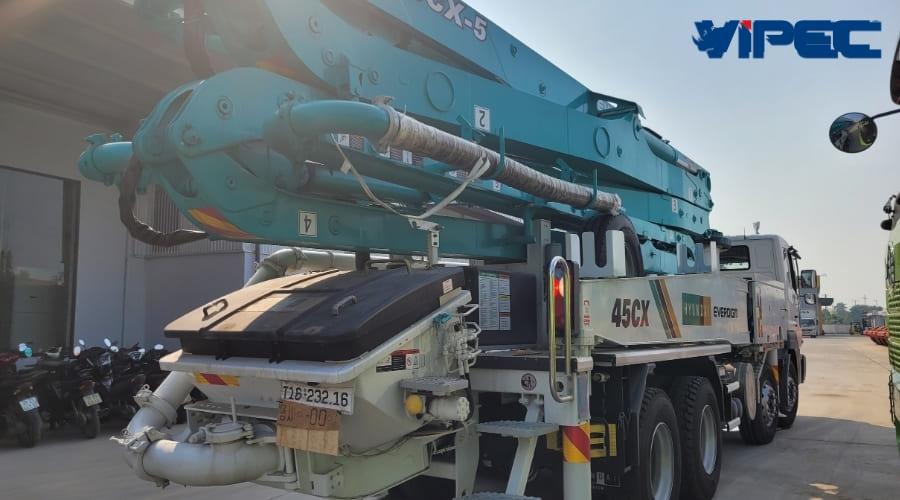

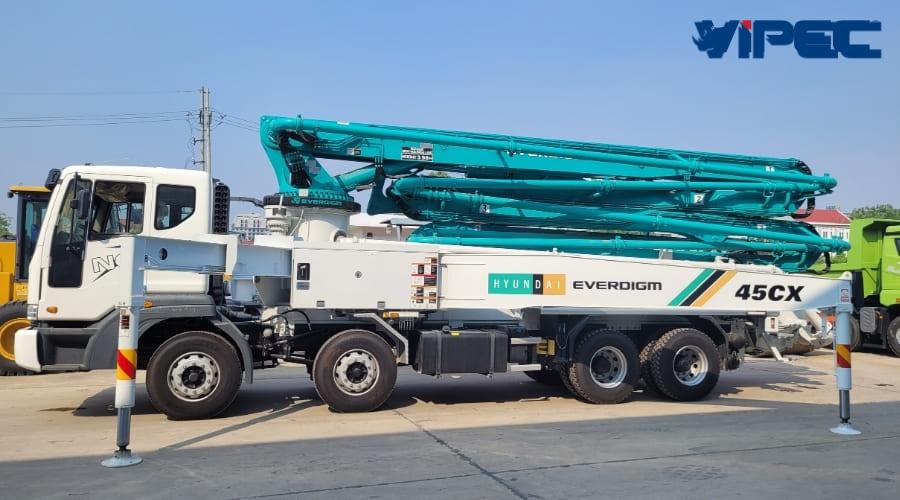

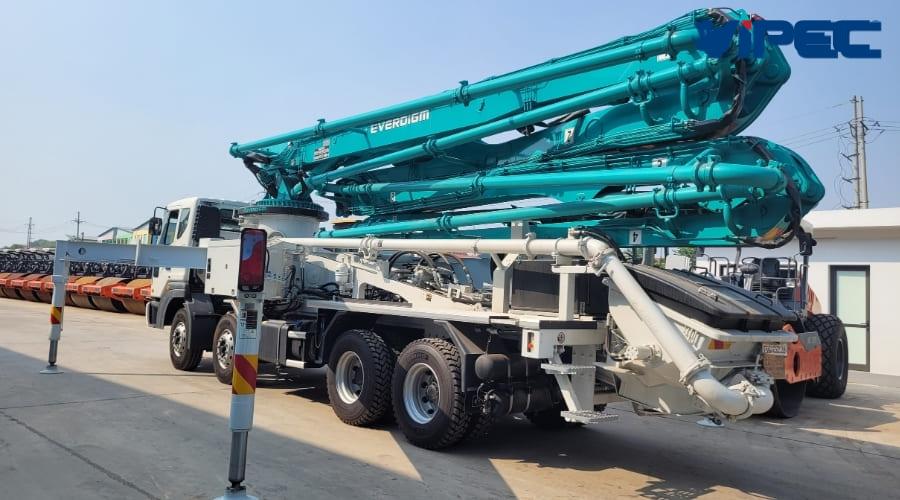

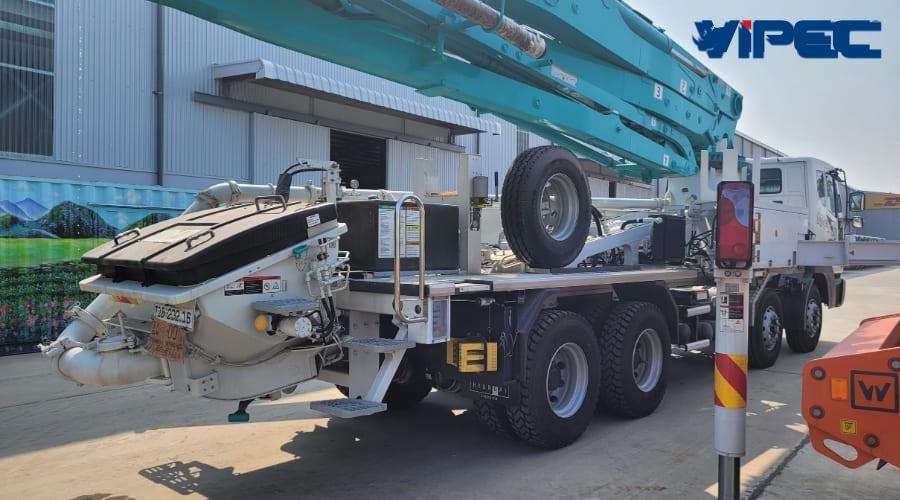

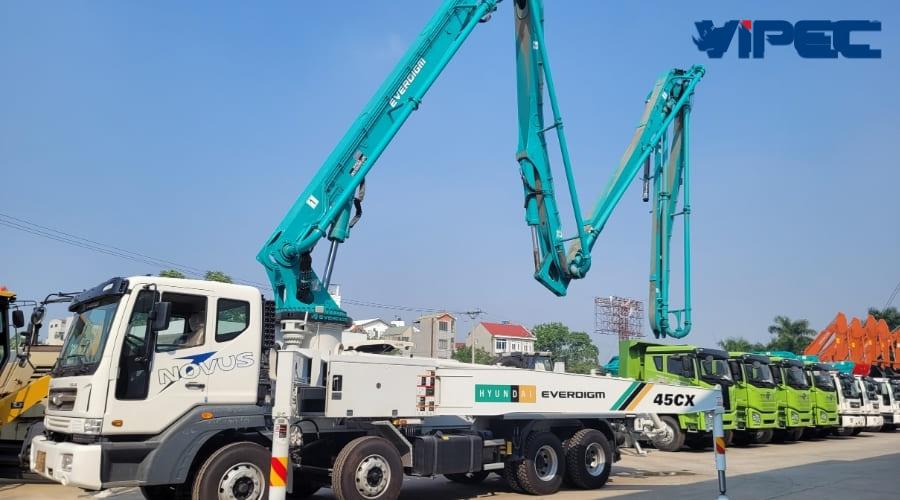

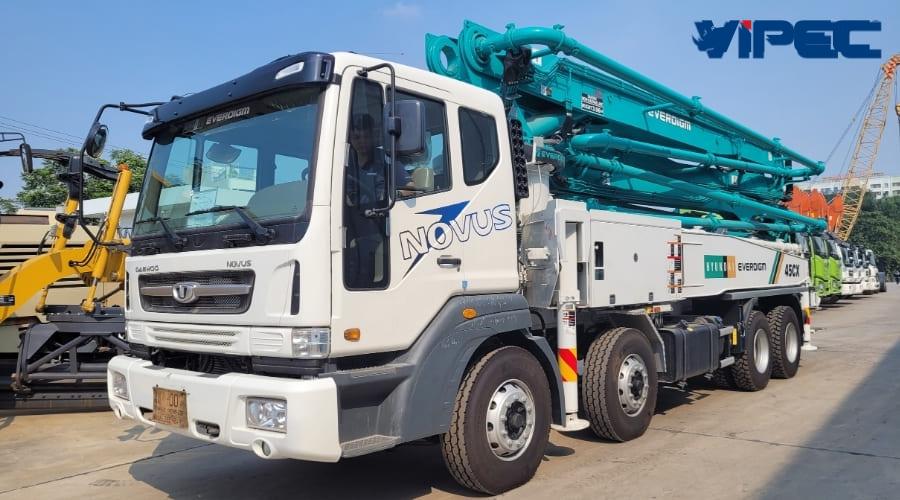

Hyundai HD320
FFH Closed-Loop Hydraulic System
A4VG125HD x 2
37.5 m
42.1 m
160 m3/h
85 bar
Euro 4
2022 - 2023
South Korea
Hanoi
New, unused machine

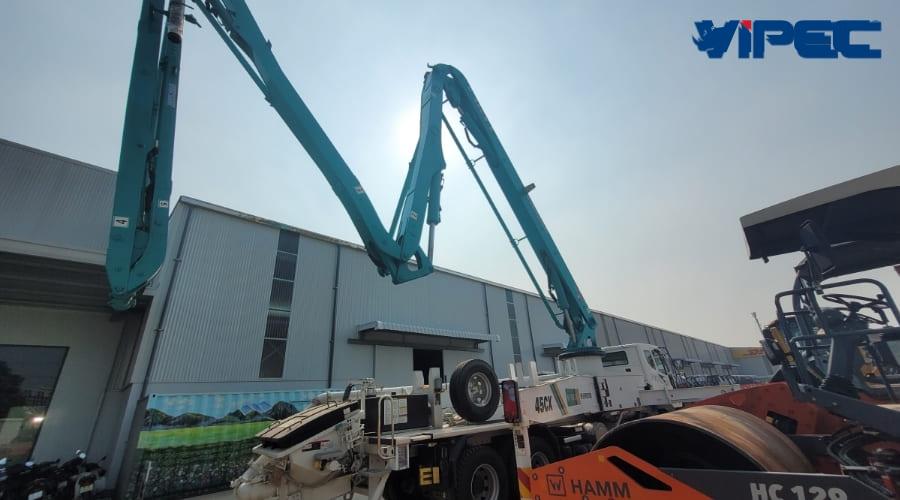

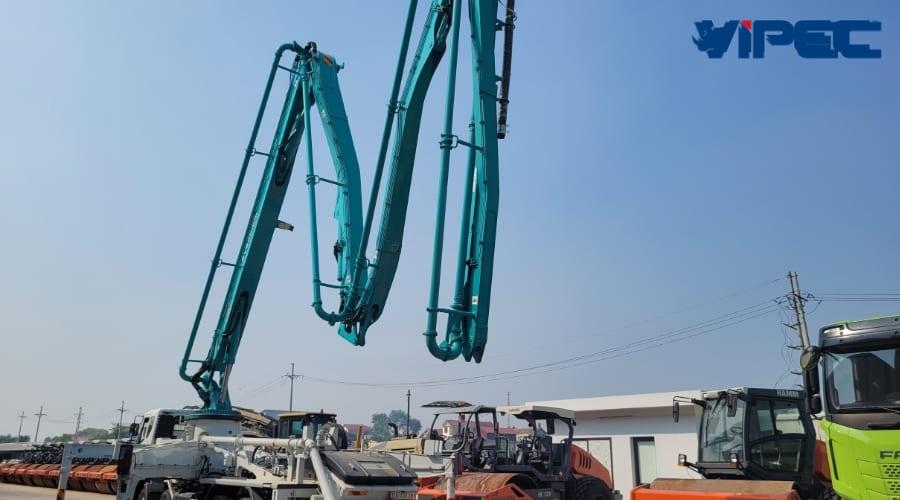

Boom Folding Type
5-section - ZR-fold type
Max Vertical Reach
42.1 m
Max Horizontal Reach
37.5 m
Max Depth Reach
29.1 m
Safe Boom Unfolding Height
8.3 m
Boom Rotation Angle
360 degrees
End Hose Length
3 m
Delivery Pipe Diameter
125 mm
Pump Configuration
2116
Hydraulic System
FFH Closed-Loop Hydraulic System
Main Pump (2 axial pumps)
A4VG125HD x 2
Concrete Delivery Cylinder
230 x 2.100 mm
Strokes per minute*
30 strokes/min
Concrete Pumping Output*
160 m3/h
Concrete Pumping Pressure*
85 bar
S-Valve Type
S-Valve, S2318 (D.230 - 180mm)
Hopper Capacity (liters)
600 l

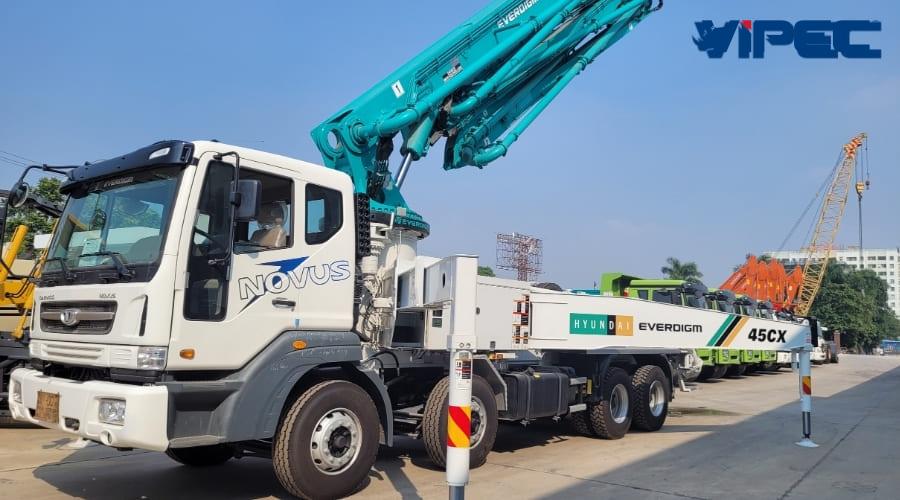

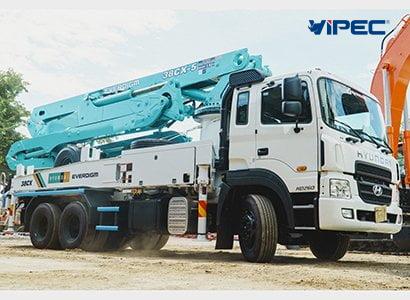

Powerful Hyundai HD260 chassis

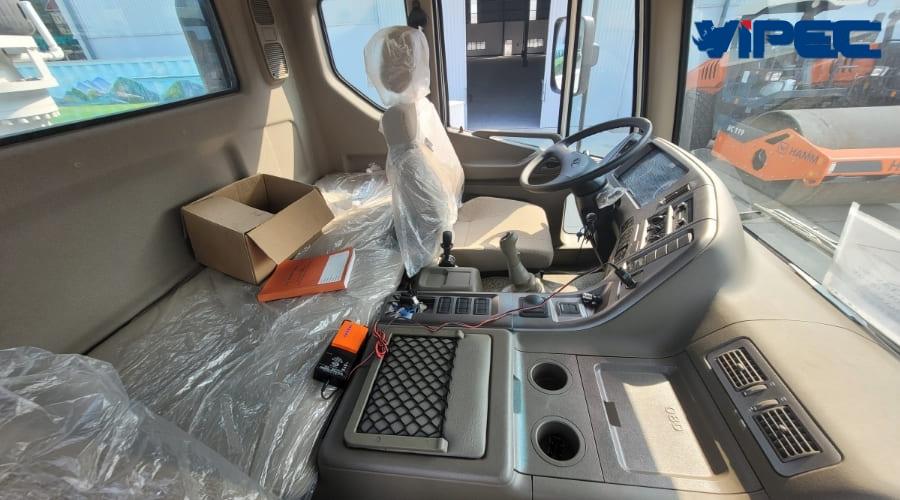

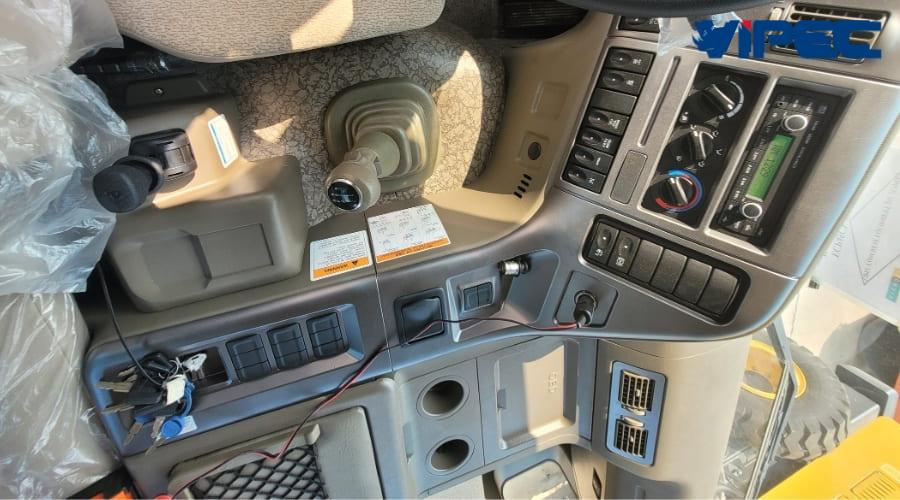

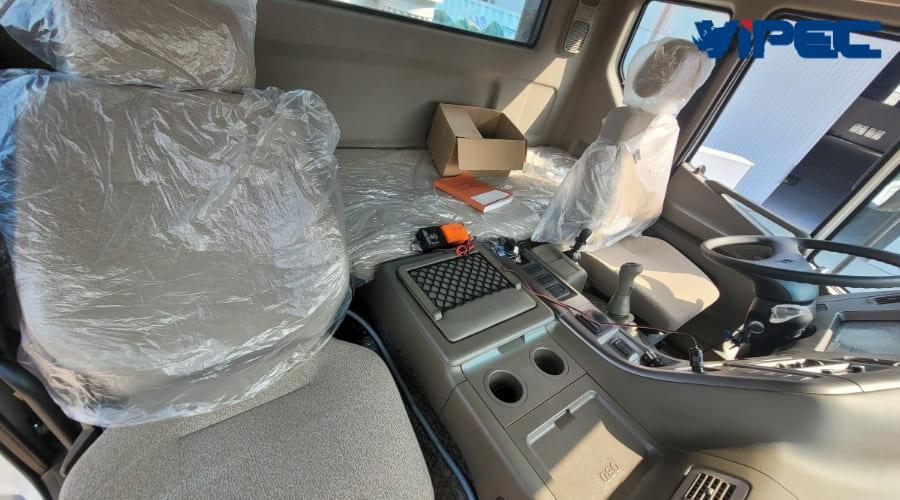

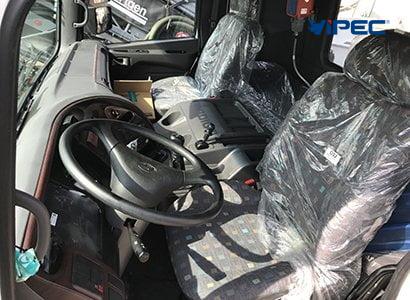

Wood-paneled cabin, electric power windows, extended cabin space (double cabin)

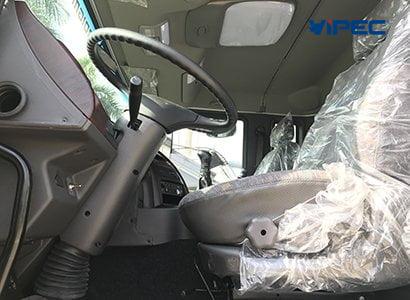

Premium air suspension seat for comfortable operation
Electric cabin tilting

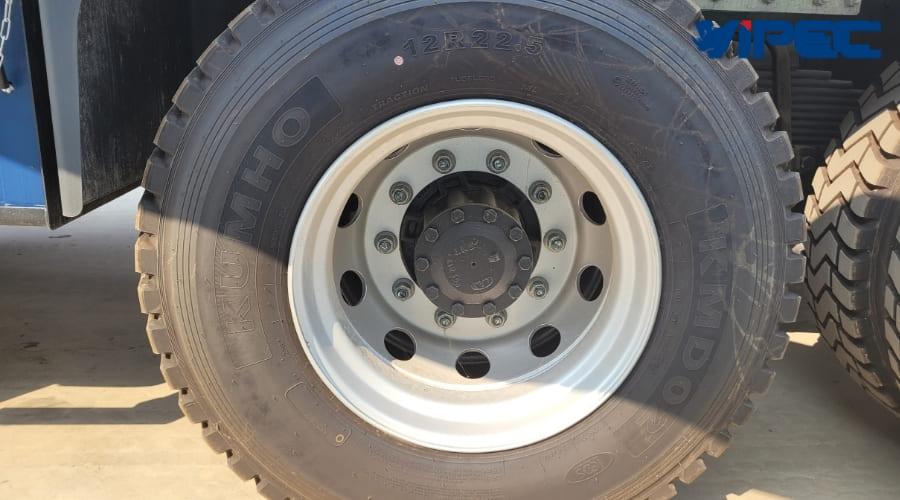

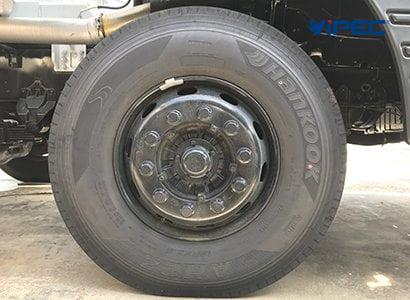

Tubeless tires

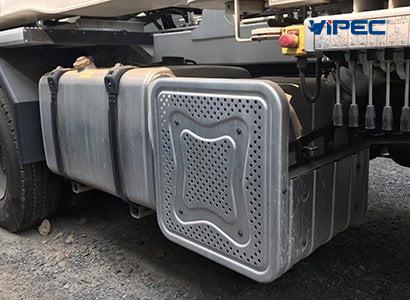

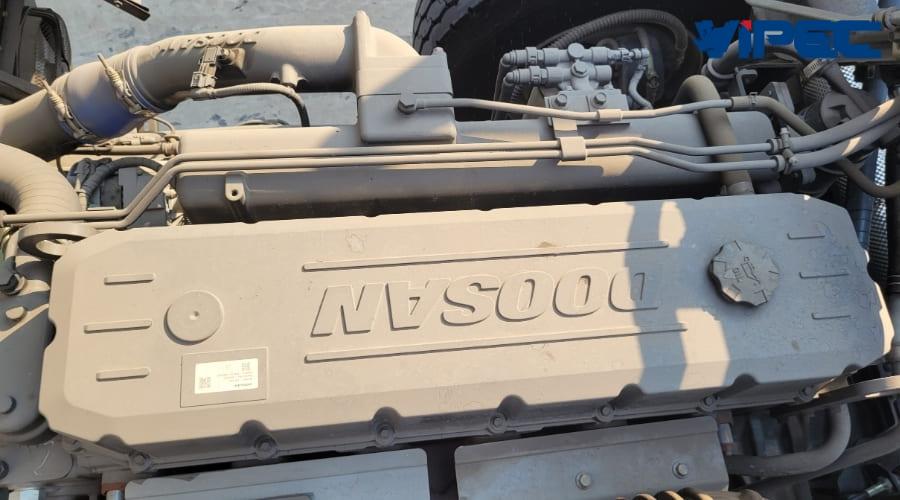

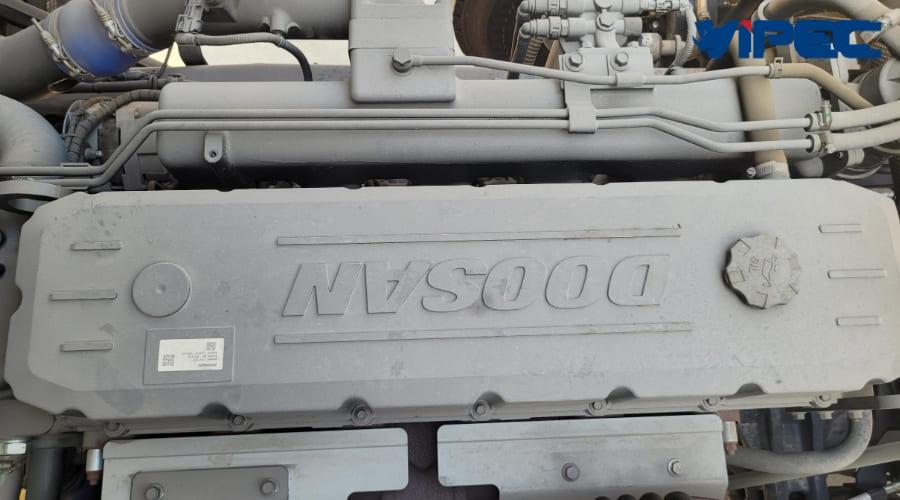

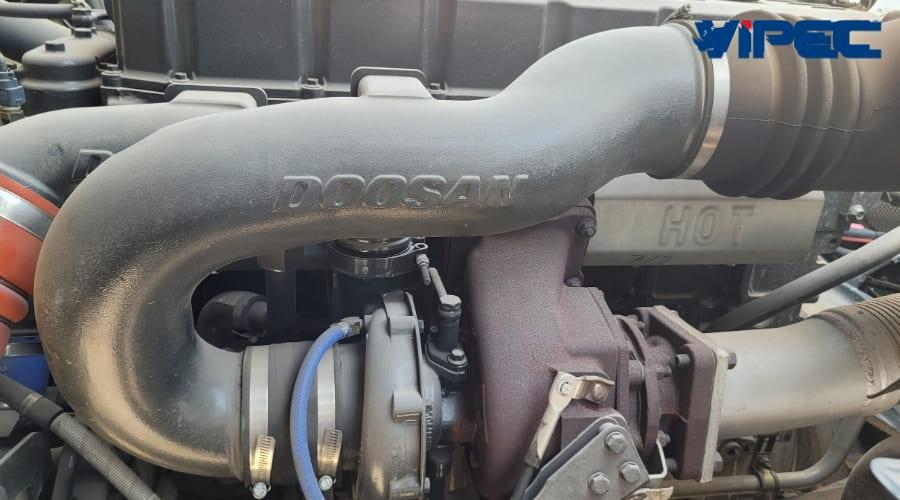

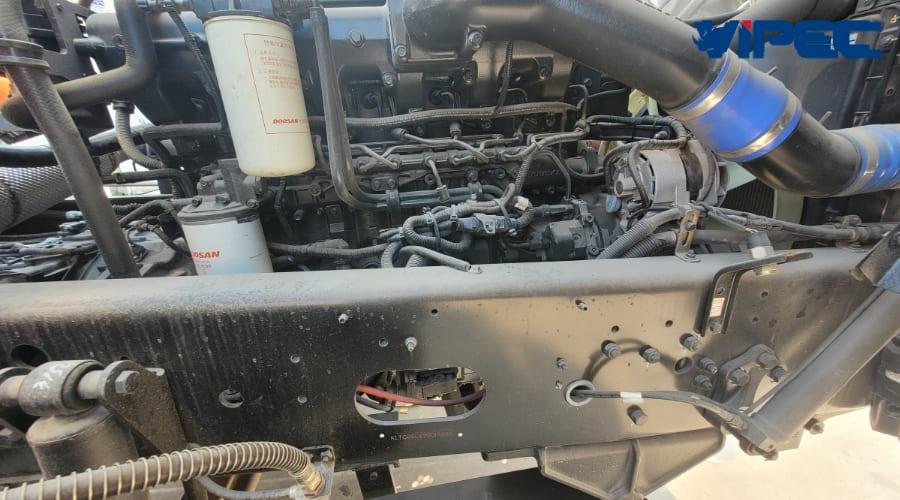

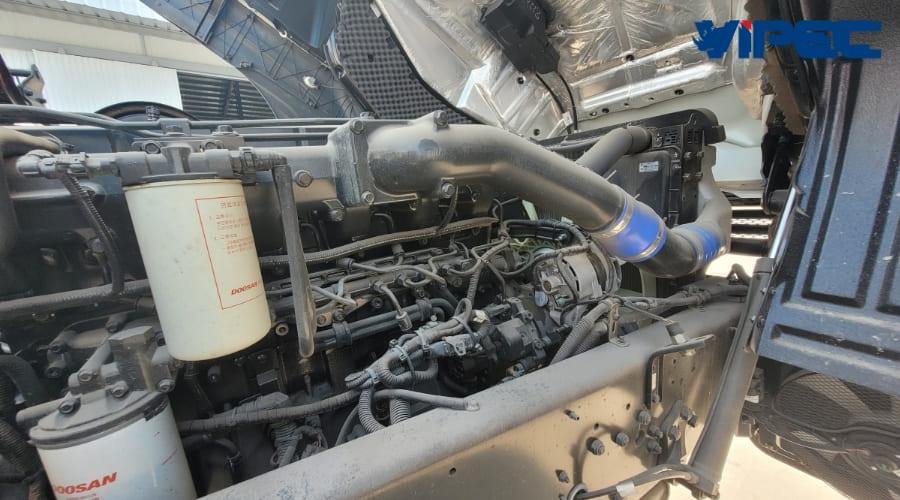

Euro 4 emission standard, exhaust gas recirculation engine – double combustion, no Adblue solution required

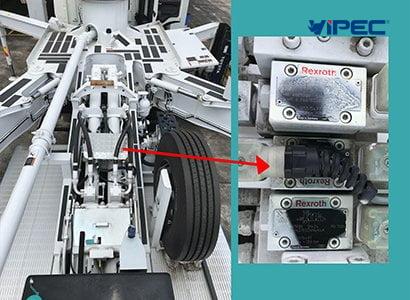

FFH closed-loop hydraulic system – Germany, efficient and economical

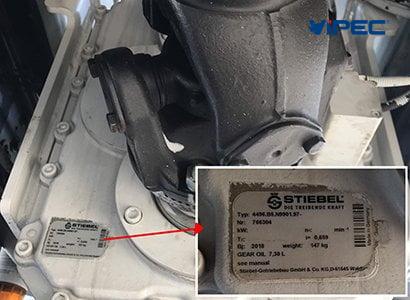

STIEBEL pump gearbox – Germany

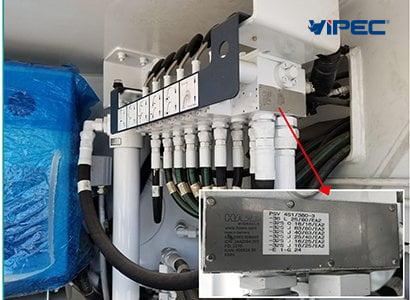

HAWE boom control valve block – Germany
REXROTH brand hydraulic pump system – Germany
Main pump: 02 BOSCH REXROTH brand axial pumps – Germany

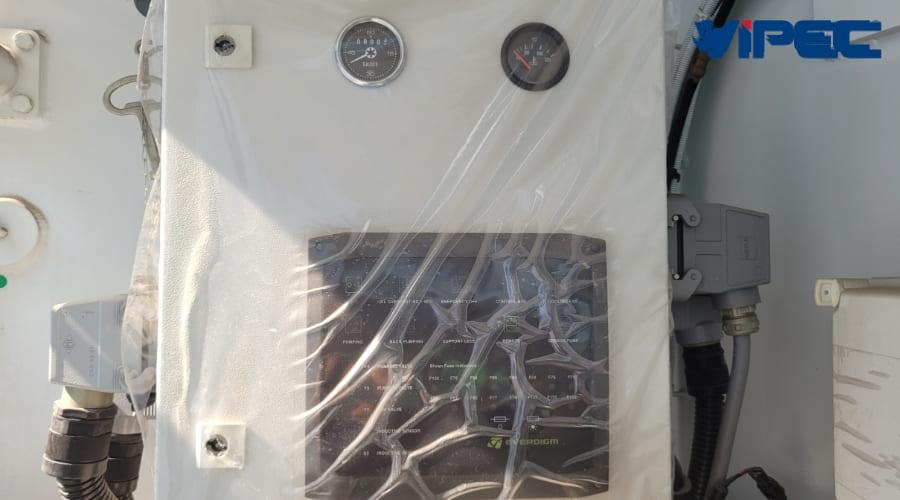

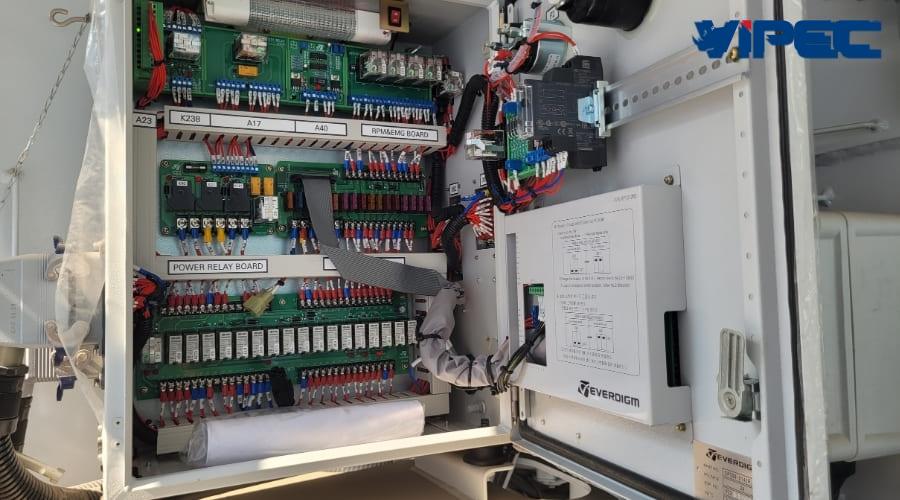

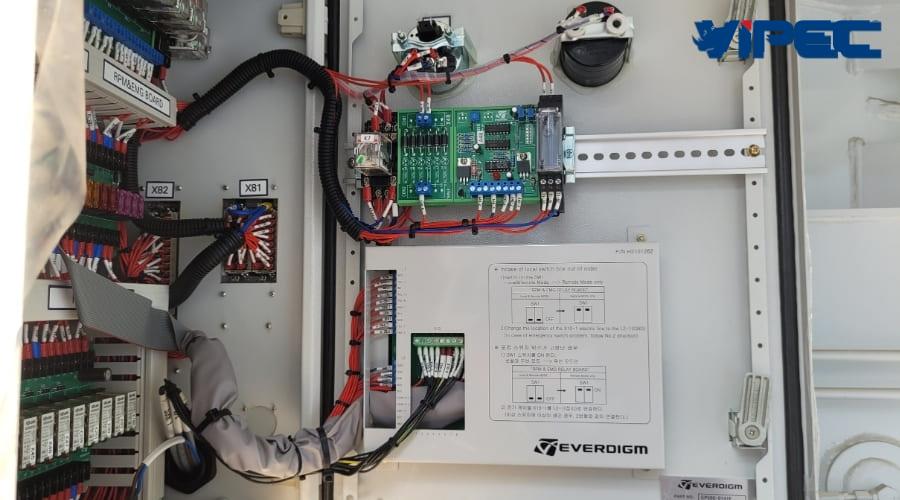

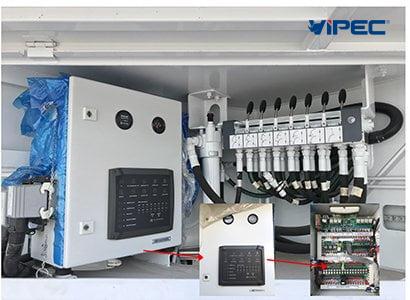

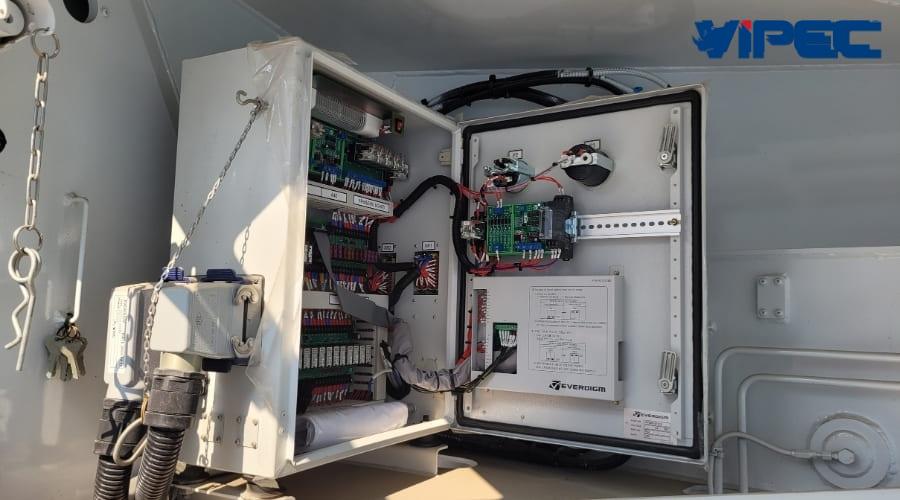

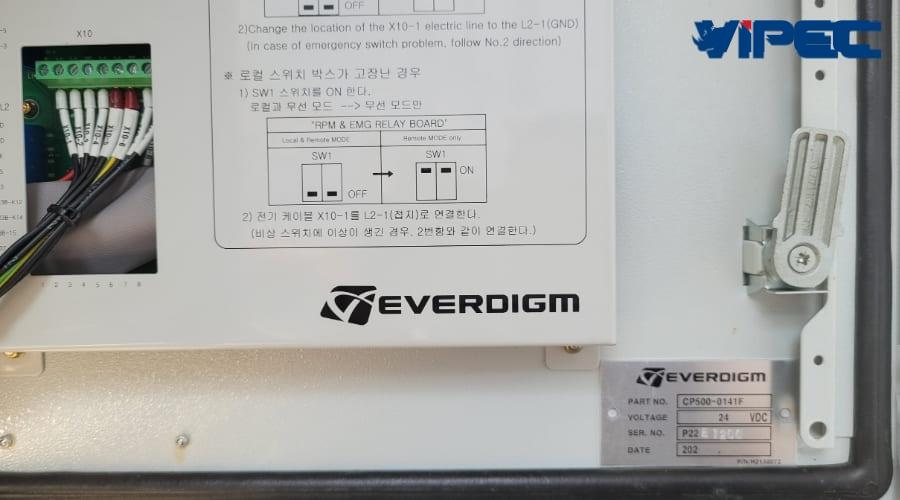

Modular electrical control box, equipped with a display screen for equipment operating status

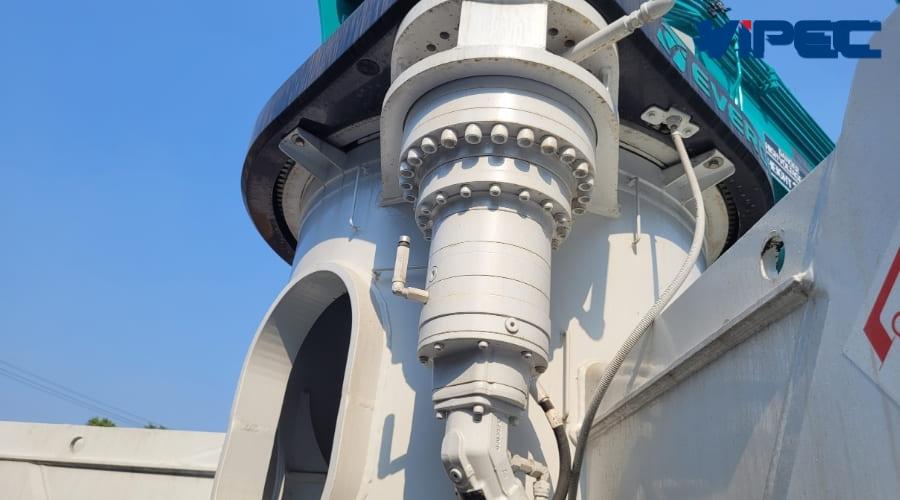

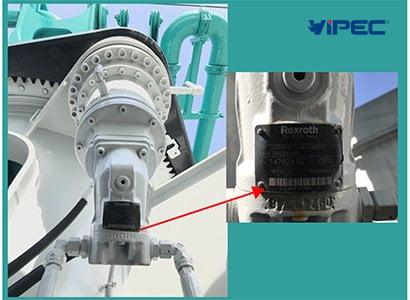

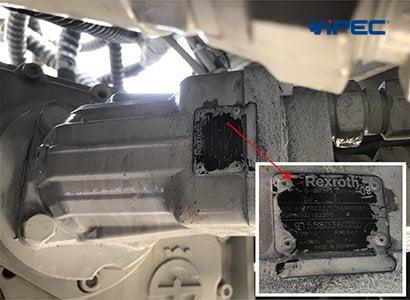

REXROTH slewing reducer and motor – Germany
New high-pressure S-valve cylinder

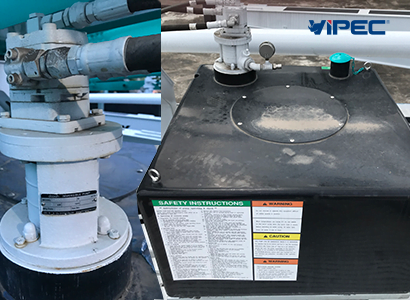

Vehicle cleaning water pump system

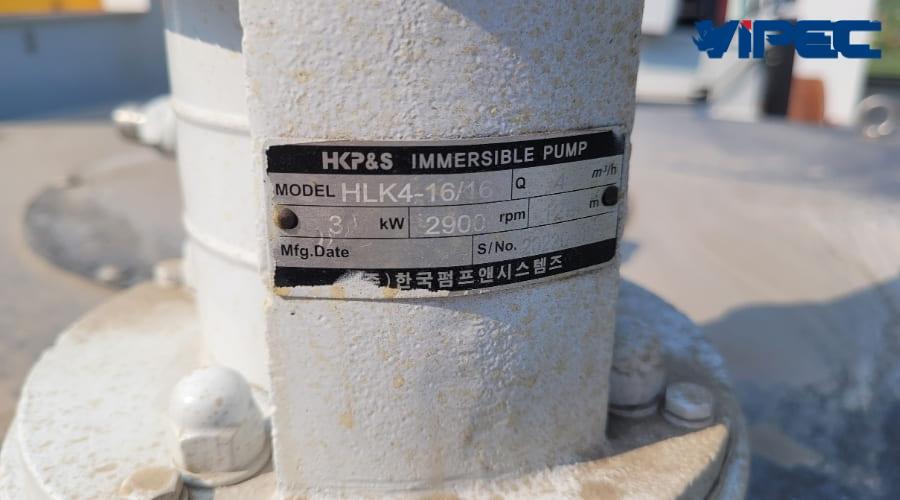

Water pump (30 bar)
Water tank (400 liters)
High-pressure spray nozzle (15m hose)

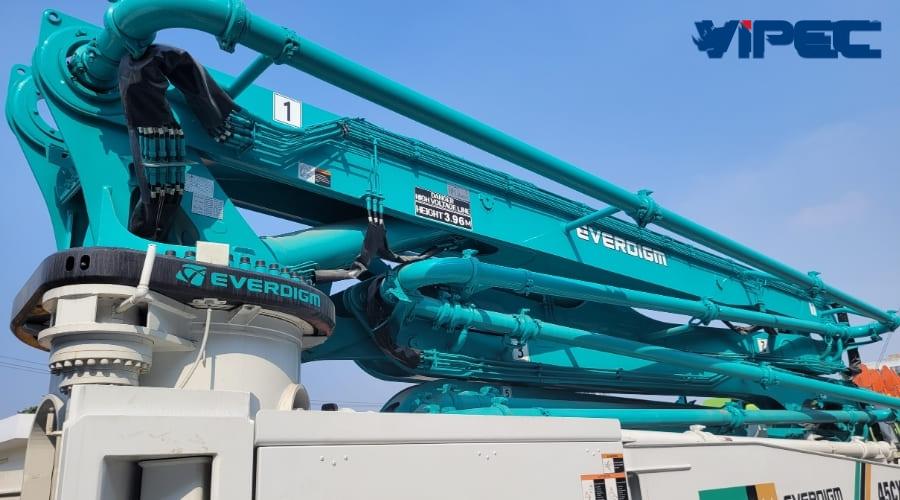

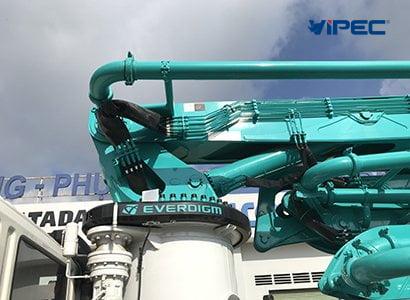

Improved boom slewing column design. Enhances stability, load-bearing capacity, and even force distribution during operation

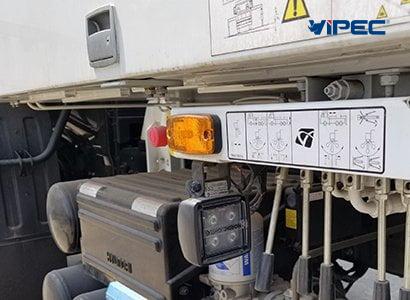

Work lights strategically placed in necessary areas

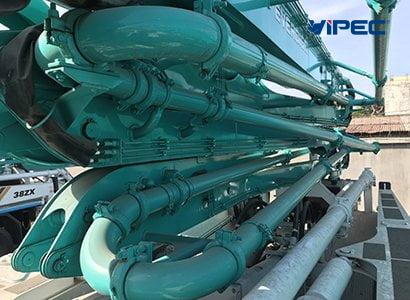

High-quality double-layer pipe, standard lifespan of 100,000 m3 of concrete

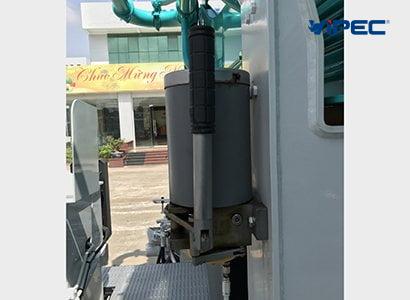

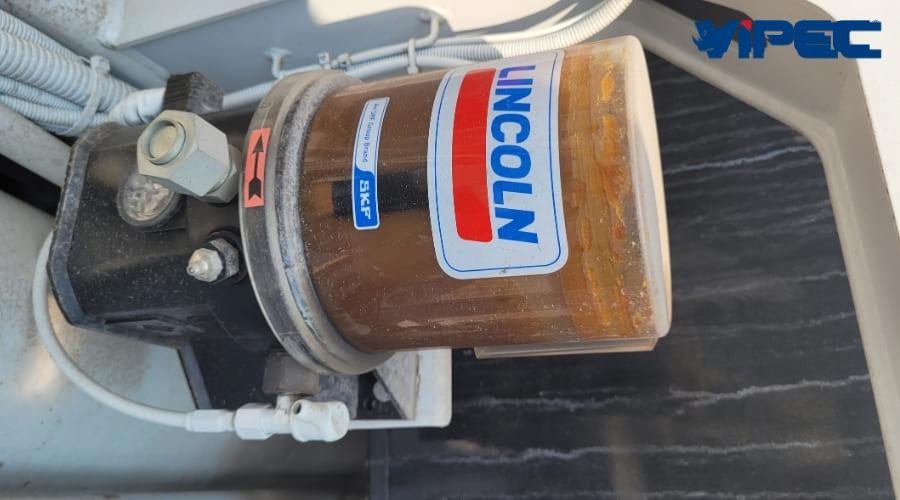

Auxiliary manual greasing system. LINCOLN automatic greasing system – Germany

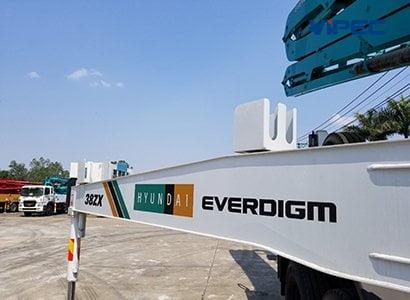

Pump pipe holder on the rear outrigger beam

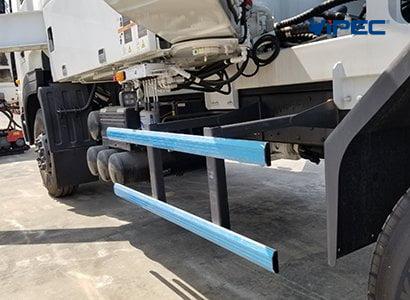

Side guards compliant with Ministry of Transport standards

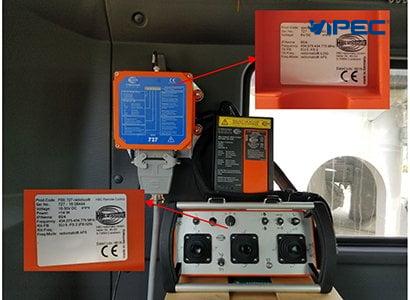

New generation HBC wireless remote control – Germany

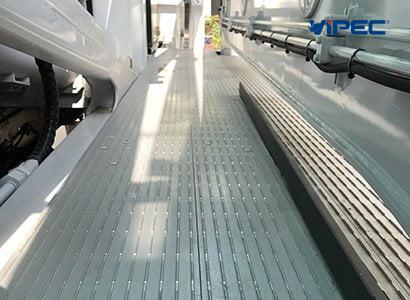

Aluminum alloy deck (anti-slip, rust-resistant)
Bubble level for equipment leveling

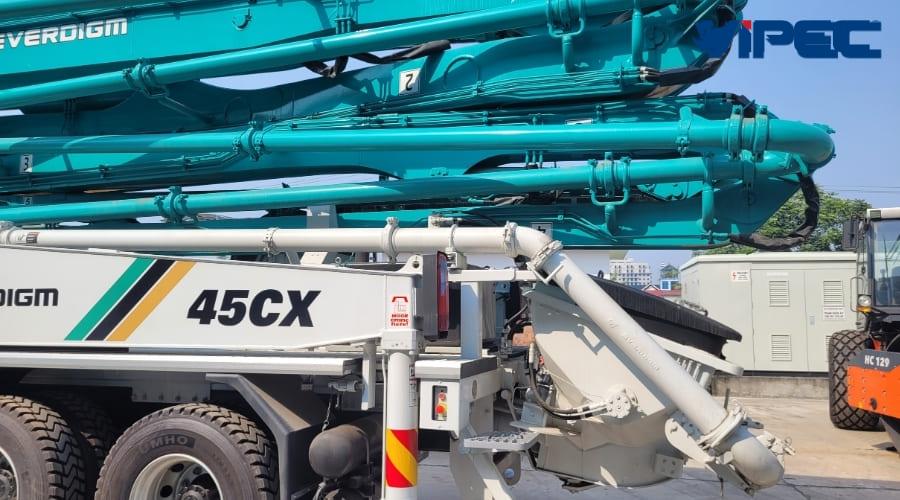

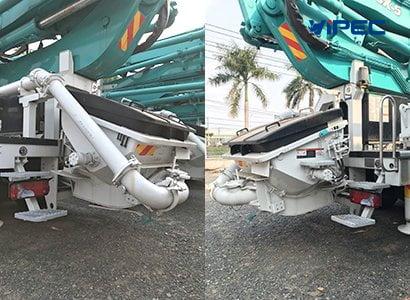

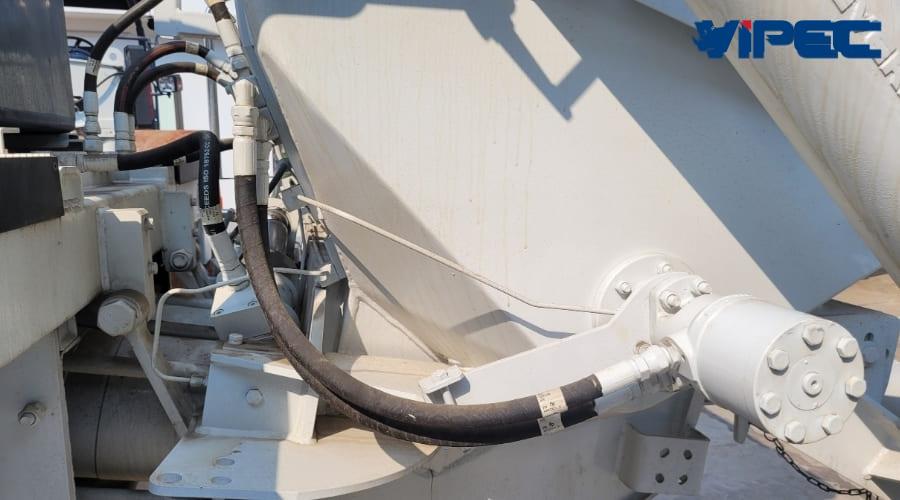

Newly designed hopper, preventing concrete segregation and clogging. Two hydraulic agitator motors on both sides

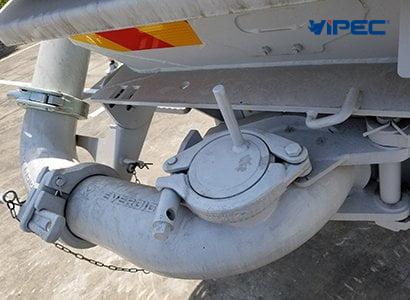

High-durability end hose connection #1, with cleaning ball insertion hole
High-quality boom steel manufacturing system Japan-Austria DIN STE890 (Europe)

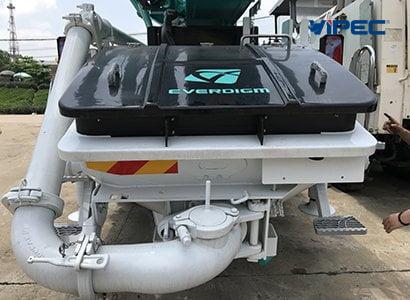

Durable and lightweight composite hopper cover, high aesthetic appeal

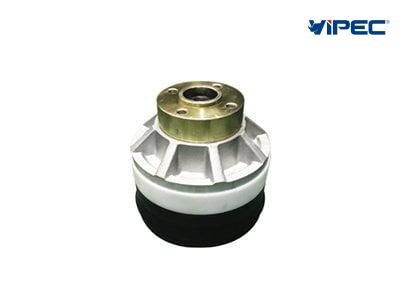

Single-lip pump seal
S-valve S2318 – Large opening (Prevents stone segregation, stone clogging)

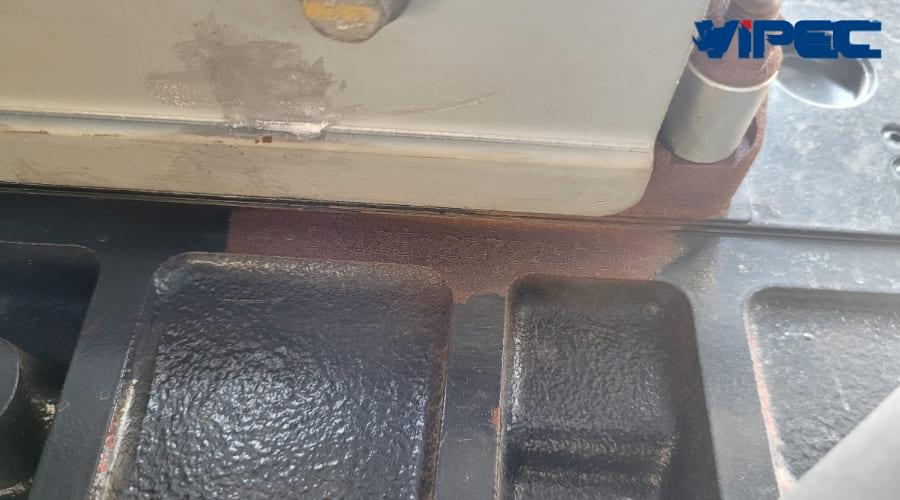

Wear plate – Tungsten Carbide wear surface, high durability
Chrome-plated concrete pump cylinder (High durability)

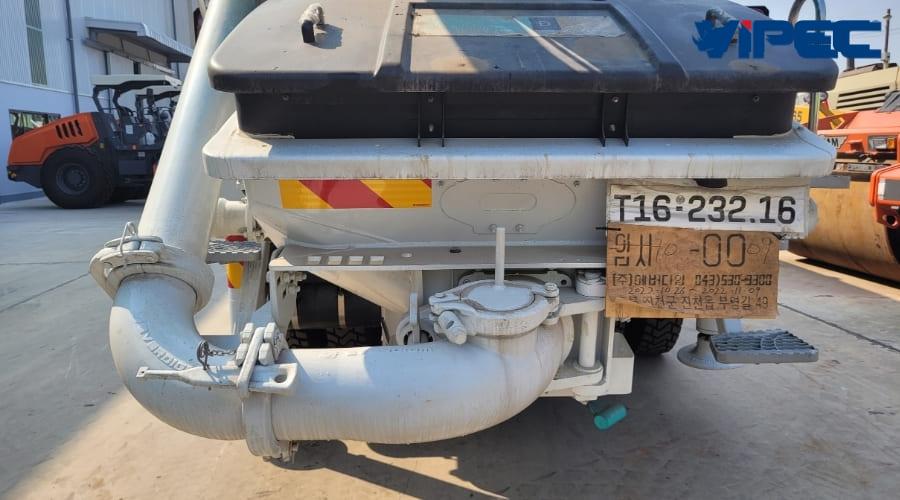

Double-layer reducing pipe (150 – 125mm)

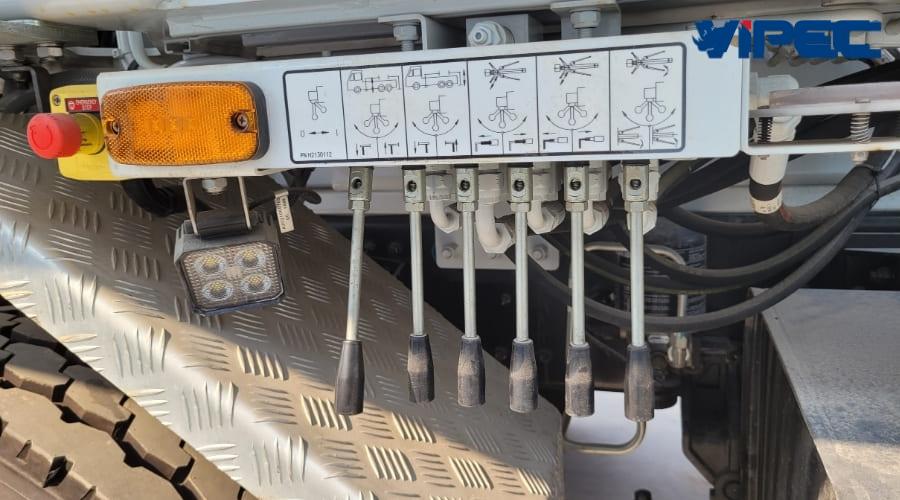

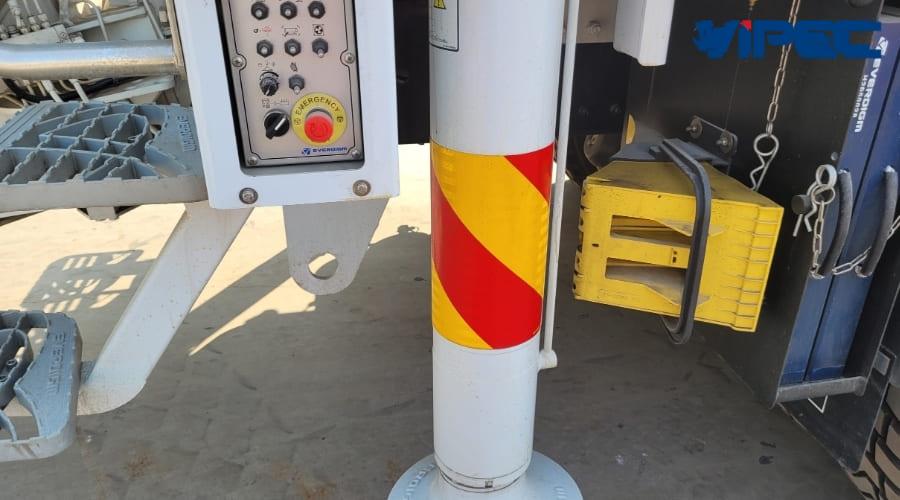

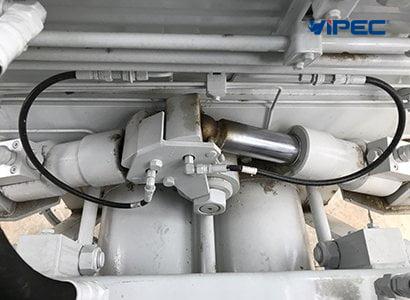

HAWE anti-drop valve for outriggers – Germany
